WNMG 332-SM:T8415
WNMG 332-SM:T8415

WNMG 332-SM:T8415

UGC DOR8553155
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.33 CAD - $12.33 CAD
$12.33 CAD
$12.33 CAD - $12.33 CAD
$12.33 CAD

Vendu en lots de : 10

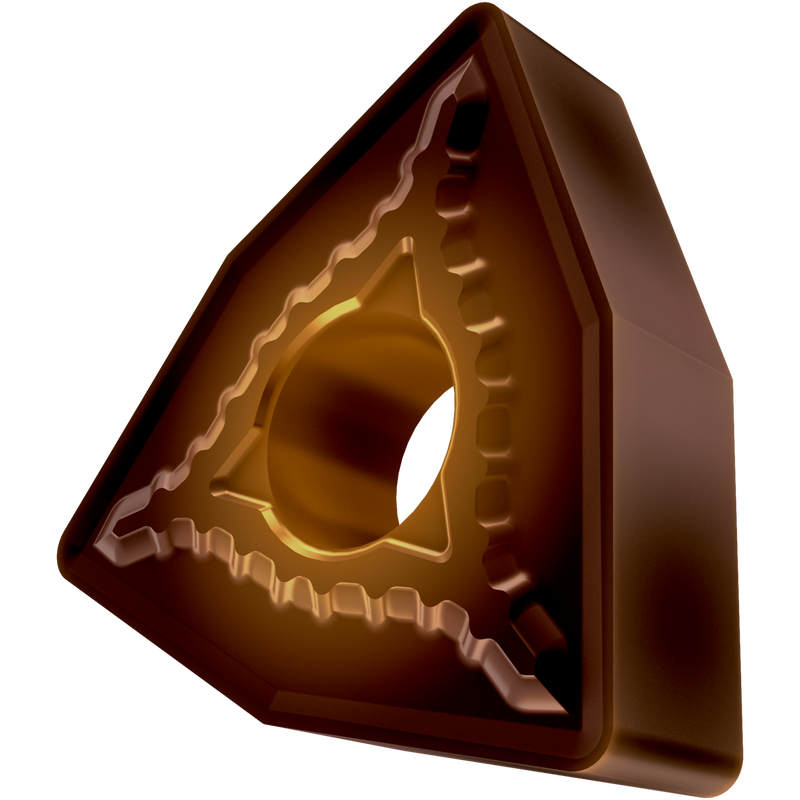

Plaquette négative double face, trigon 80° avec cercle inscrit de 0,375 pouce de diamètre, 0,187 pouce d'épaisseur, rayon de pointe de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 332-SM:T8415
Product Name (ISO)WNMG 060408E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553155
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553155
EAN3603604269018
File Type Download
WNMG 332-SM:T8415 — 3D Model STP Download
WNMG 332-SM:T8415 — 2D Model DXF Download
WNMG 332-SM:T8415 — Line Drawing PDF Download
