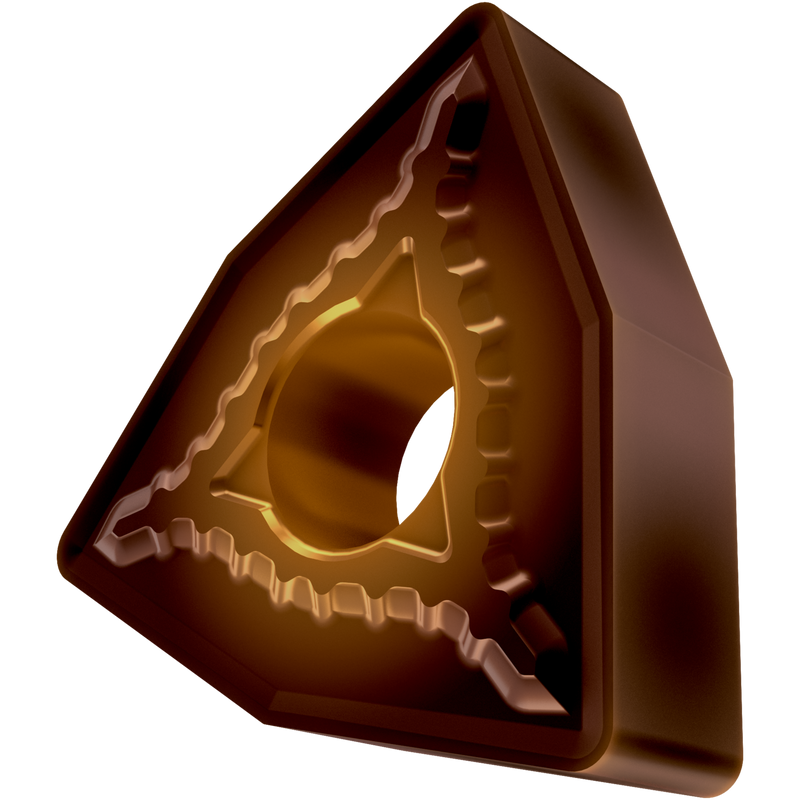

WNMG 433-SM:T8415
WNMG 433-SM:T8415

WNMG 433-SM:T8415

UGC DOR8553168
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.97 CAD - $14.97 CAD
$14.97 CAD
$14.97 CAD - $14.97 CAD
$14.97 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, trigon de 80° avec diamètre du cercle inscrit de 0,5 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,047 pouce, précision de l'indexage selon la classe de tolérance M de la norme ISO, brise-copeaux SM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433-SM:T8415
Product Name (ISO)WNMG 080412E-SM:T8415
GradeT8415
Chipbreaker (CBMD)SM
Product Number8553168
Product FamilyWNMG
Insert Geometry
Insert DesignOK, je vais vous aider.
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8553168
EAN3603604269148
File Type Download
WNMG 433-SM:T8415 — 3D Model STP Download
WNMG 433-SM:T8415 — 2D Model DXF Download
WNMG 433-SM:T8415 — Line Drawing PDF Download
