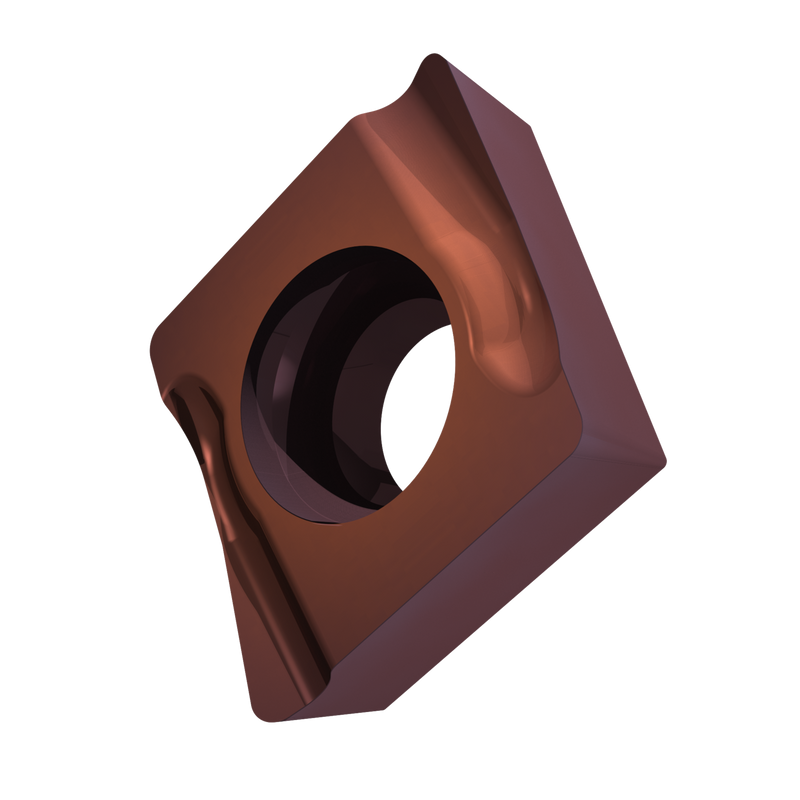

CCGT 21.51L-SI:T8415
CCGT 21.51L-SI:T8415

CCGT 21.51L-SI:T8415

UGC DOR8553191
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.19 CAD - $14.19 CAD
$14.19 CAD
$14.19 CAD - $14.19 CAD
$14.19 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 0,25 pouce, épaisseur de 0,094 pouce, rayon de bec de 0,016 pouce, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SI avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 21.51L-SI:T8415
Product Name (ISO)CCGT 060204EL-SI:T8415
GradeT8415
Chipbreaker (CBMD)Oui
Product Number8553191
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle compris rhomboédrique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553191
EAN3603604269162
File Type Download
CCGT 21.51L-SI:T8415 — Line Drawing PDF Download
