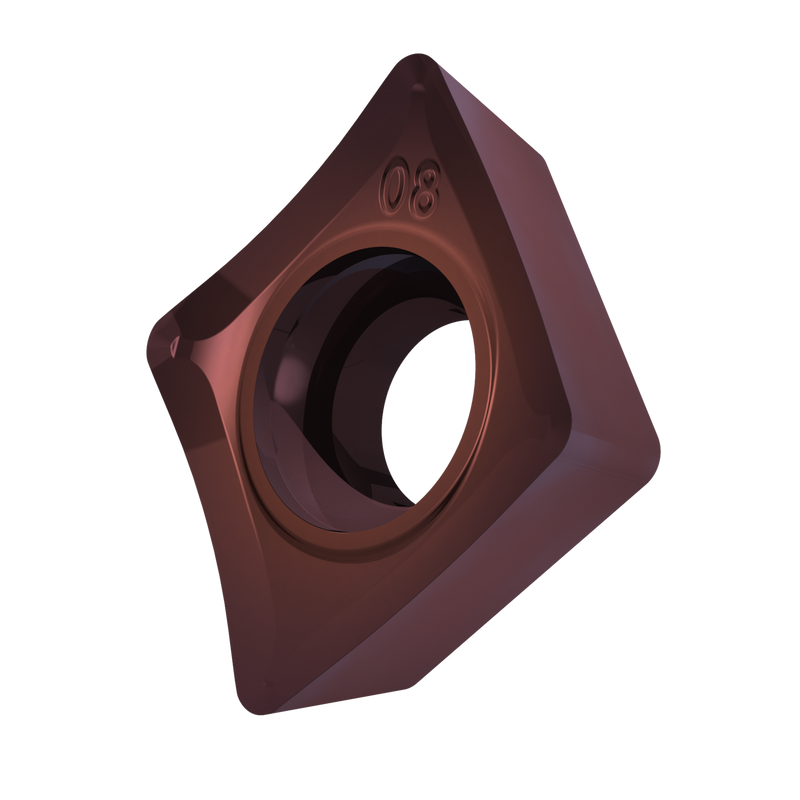

CCGT 32.52-SF3:T8415
CCGT 32.52-SF3:T8415

CCGT 32.52-SF3:T8415

UGC DOR8553198
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.29 CAD - $16.29 CAD
$16.29 CAD
$16.29 CAD - $16.29 CAD
$16.29 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde à 80° avec un dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,156 pouce, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 32.52-SF3:T8415
Product Name (ISO)CCGT 09T308E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553198
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.126"
Depth of Cut Max — mm (APMX)3.2 mm
Tool Information
Reference Numbers
EDP Number8553198
EAN3603604269230
File Type Download
CCGT 32.52-SF3:T8415 — Line Drawing PDF Download
