CCGT 432-SF3:T8415
CCGT 432-SF3:T8415

CCGT 432-SF3:T8415

UGC DOR8553200
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.79 CAD - $22.79 CAD
$22.79 CAD
$22.79 CAD - $22.79 CAD
$22.79 CAD

Vendu en lots de : 10

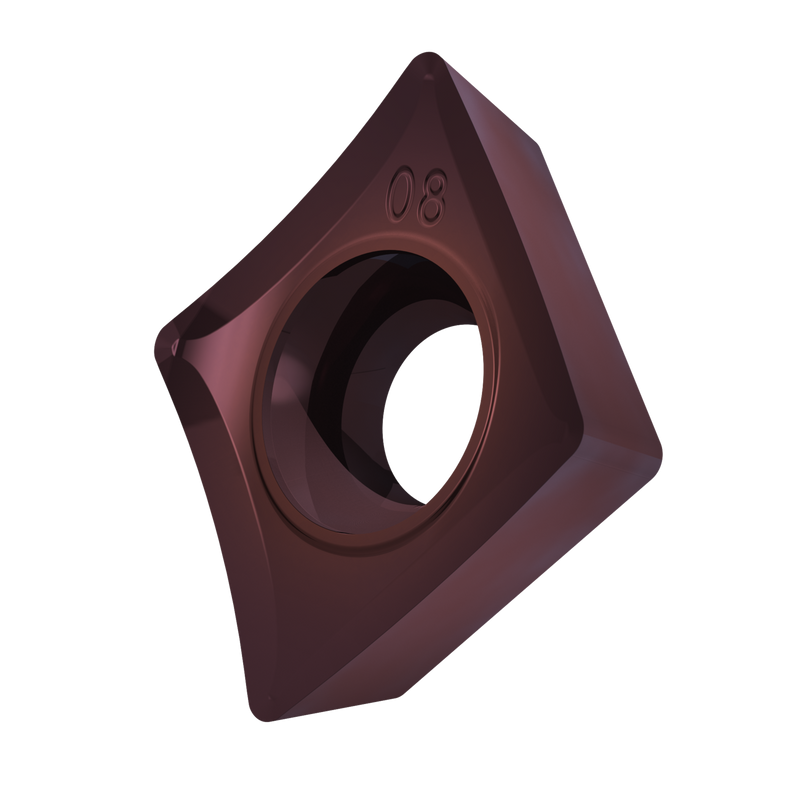

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 0,5 pouce, épaisseur 0,187 pouce, rayon de bec 0,031 pouce, précision d'indexage selon tolérance ISO classe G, brise-copeaux SF3 avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 432-SF3:T8415
Product Name (ISO)CCGT 120408E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553200
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle de 80° inclus, rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.01 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number8553200
EAN3603604269254
File Type Download
CCGT 432-SF3:T8415 — Line Drawing PDF Download
