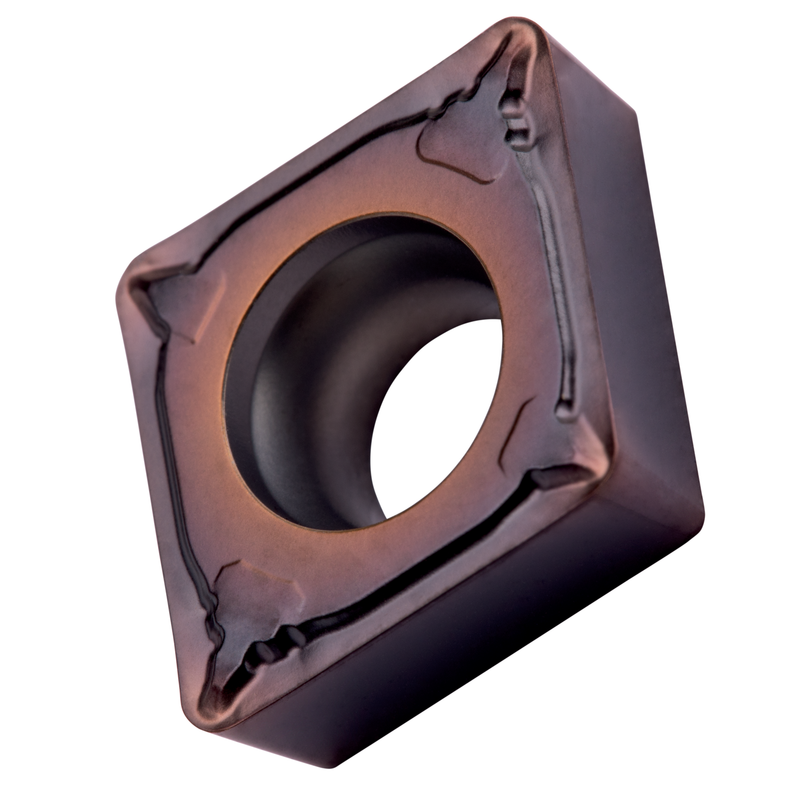

CCMT 32.50.5-UR:T8415
CCMT 32.50.5-UR:T8415

CCMT 32.50.5-UR:T8415

UGC DOR8553208
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.50 CAD - $11.50 CAD
$11.50 CAD
$11.50 CAD - $11.50 CAD
$11.50 CAD

Vendu en lots de : 10

Plaquette positive simple face à 80° rhomboïdale avec dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,156 pouce, rayon de bec de 0,008 pouce, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.50.5-UR:T8415
Product Name (ISO)CCMT 09T302E-UR:T8415
GradeT8415
Chipbreaker (CBMD)VOUS
Product Number8553208
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle entre faces à 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8553208
EAN3603604269339
File Type Download
CCMT 32.50.5-UR:T8415 — Line Drawing PDF Download
