CCMT 32.51-NF2:T8415
CCMT 32.51-NF2:T8415

CCMT 32.51-NF2:T8415

UGC DOR8553210
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.83 CAD - $10.83 CAD
$10.83 CAD
$10.83 CAD - $10.83 CAD
$10.83 CAD

Vendu en lots de : 10

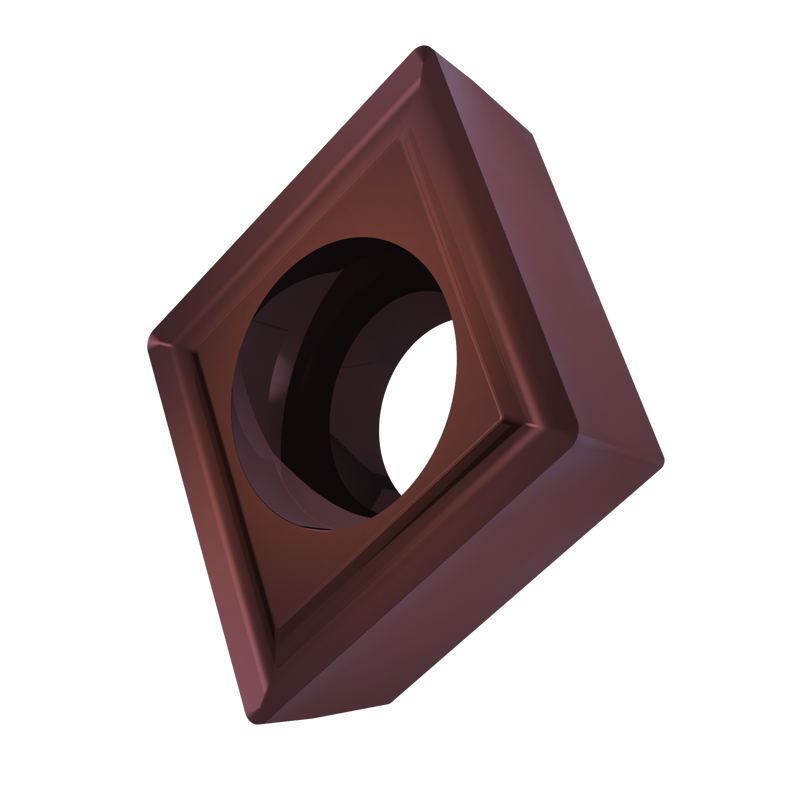

Plaquette positive simple face à 80° rhomboïdale avec dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, 0,156 pouce d'épaisseur, rayon de bec de 0,016 pouce, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NF2 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.51-NF2:T8415
Product Name (ISO)CCMT 09T304E-NF2:T8415
GradeT8415
Chipbreaker (CBMD)NF2
Product Number8553210
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553210
EAN3603604269353
File Type Download
CCMT 32.51-NF2:T8415 — Line Drawing PDF Download
