CCMW 32.51:T8415
CCMW 32.51:T8415

CCMW 32.51:T8415

UGC DOR8553218
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.83 CAD - $10.83 CAD
$10.83 CAD
$10.83 CAD - $10.83 CAD
$10.83 CAD

Vendu en lots de : 10

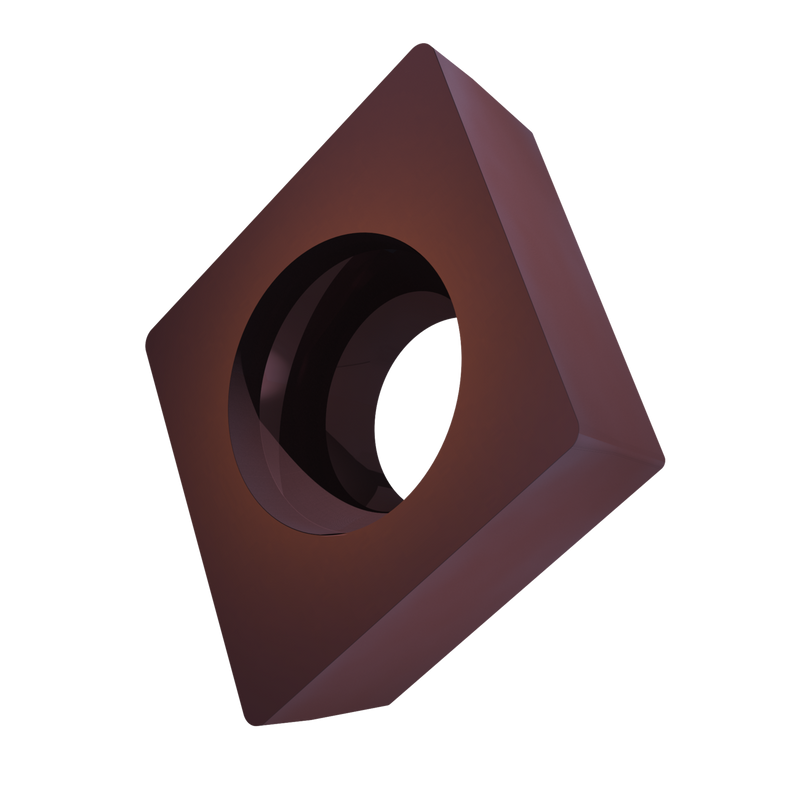

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,156 pouce, rayon de bec de 0,016 pouce et précision d'indexage selon la classe de tolérance ISO-M, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMW 32.51:T8415
Product Name (ISO)CCMW 09T304:T8415
GradeT8415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8553218
Product FamilyCCFM
Insert Geometry
Insert DesignCCMF
Insert Shape Code (SC)C - angle interne de 80° rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.248"
Depth of Cut Max — mm (APMX)6.3 mm
Tool Information
Reference Numbers
EDP Number8553218
EAN3603604269438
File Type Download

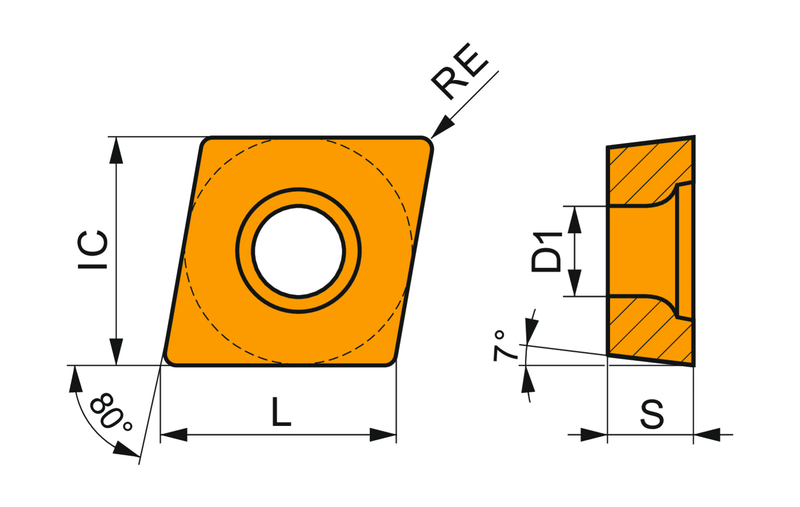

CCMW 32.51:T8415 — Line Drawing PDF Download
