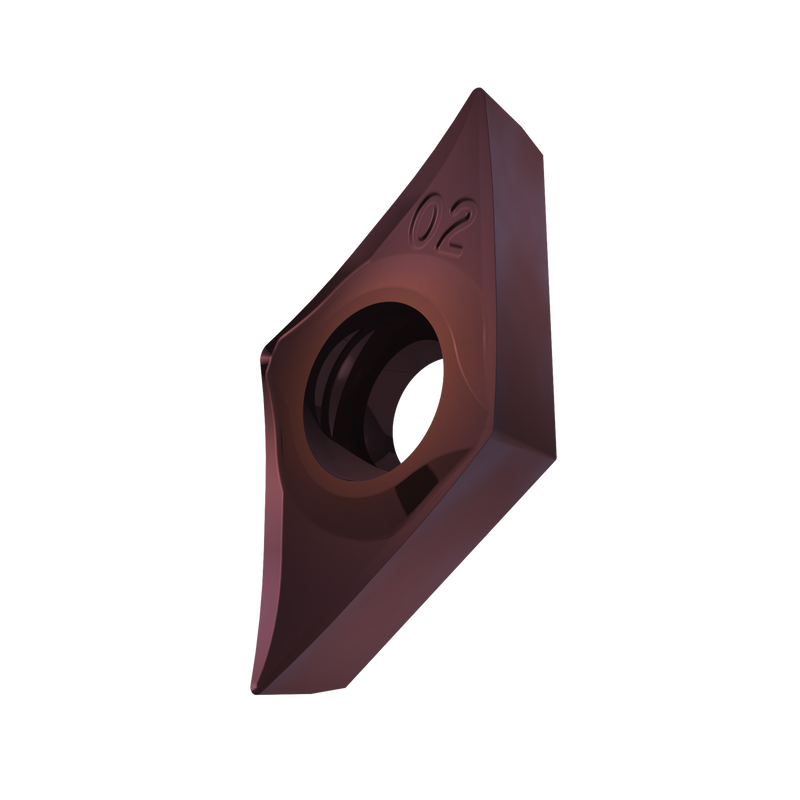

DCGT 21.50.5-SF3:T8415
DCGT 21.50.5-SF3:T8415

DCGT 21.50.5-SF3:T8415

UGC DOR8553220
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.04 CAD - $15.04 CAD
$15.04 CAD
$15.04 CAD - $15.04 CAD
$15.04 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 0,25 pouce, épaisseur de 0,094 pouce, rayon de bec de 0,008 pouce, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 21.50.5-SF3:T8415
Product Name (ISO)DCGT 070202E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553220
Product FamilyDCGT
Insert Geometry
Insert DesignDDCG
Insert Shape Code (SC)D - angle inclus rhomboïde de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.58 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number8553220
EAN3603604269452
File Type Download
DCGT 21.50.5-SF3:T8415 — Line Drawing PDF Download
