DCGT 32.50.5-SF3:T8415
DCGT 32.50.5-SF3:T8415

DCGT 32.50.5-SF3:T8415

UGC DOR8553222
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.19 CAD - $20.19 CAD
$20.19 CAD
$20.19 CAD - $20.19 CAD
$20.19 CAD

Vendu en lots de : 10

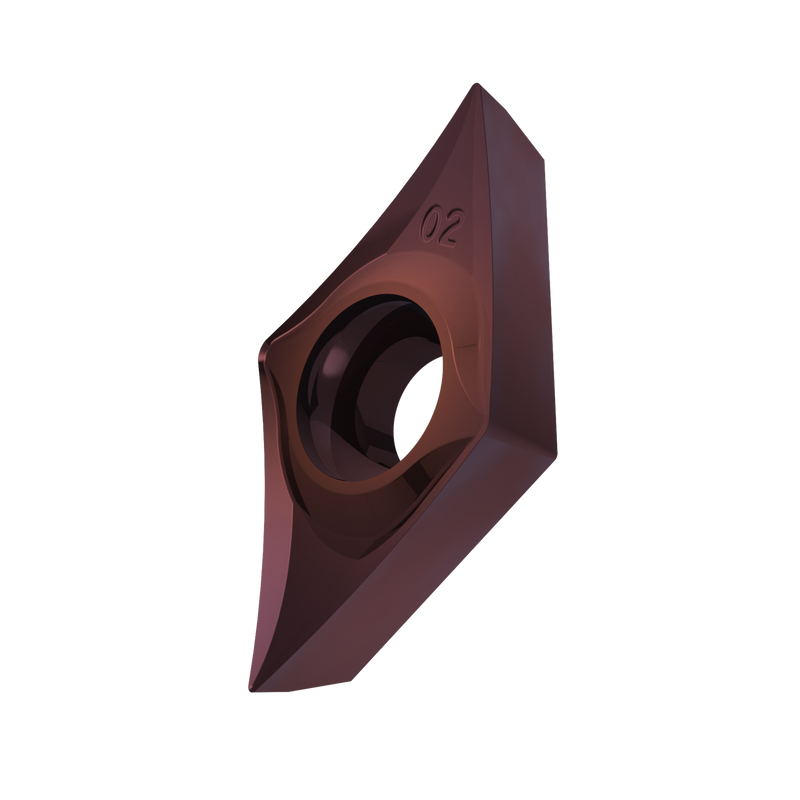

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,156 pouce, rayon de bec de 0,008 pouce, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.50.5-SF3:T8415
Product Name (ISO)DCGT 11T302E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553222
Product FamilyDCGT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle de 55° du losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number8553222
EAN3603604269476
File Type Download
DCGT 32.50.5-SF3:T8415 — Line Drawing PDF Download
