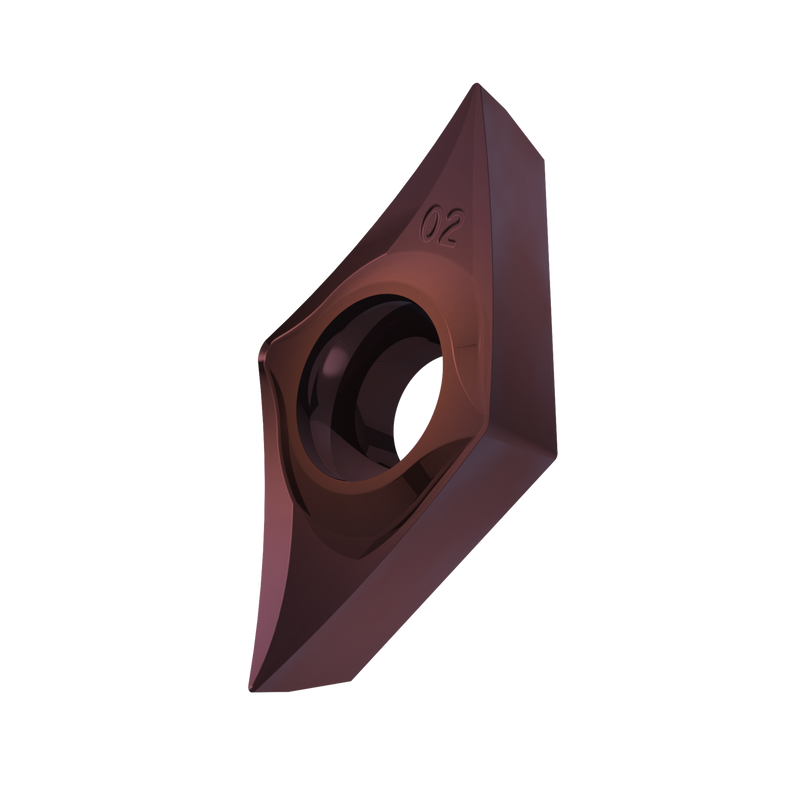

DCGT 32.51-SF3:T8415
DCGT 32.51-SF3:T8415

DCGT 32.51-SF3:T8415

UGC DOR8553223
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.04 CAD - $19.04 CAD
$19.04 CAD
$19.04 CAD - $19.04 CAD
$19.04 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,156 pouce, rayon de bec de 0,016 pouce, précision de plaçage selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.51-SF3:T8415
Product Name (ISO)DCGT 11T304E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553223
Product FamilyDGCT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle de 55° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.087"
Depth of Cut Max — mm (APMX)2.2 mm
Tool Information
Reference Numbers
EDP Number8553223
EAN3603604269483
File Type Download
DCGT 32.51-SF3:T8415 — Line Drawing PDF Download
