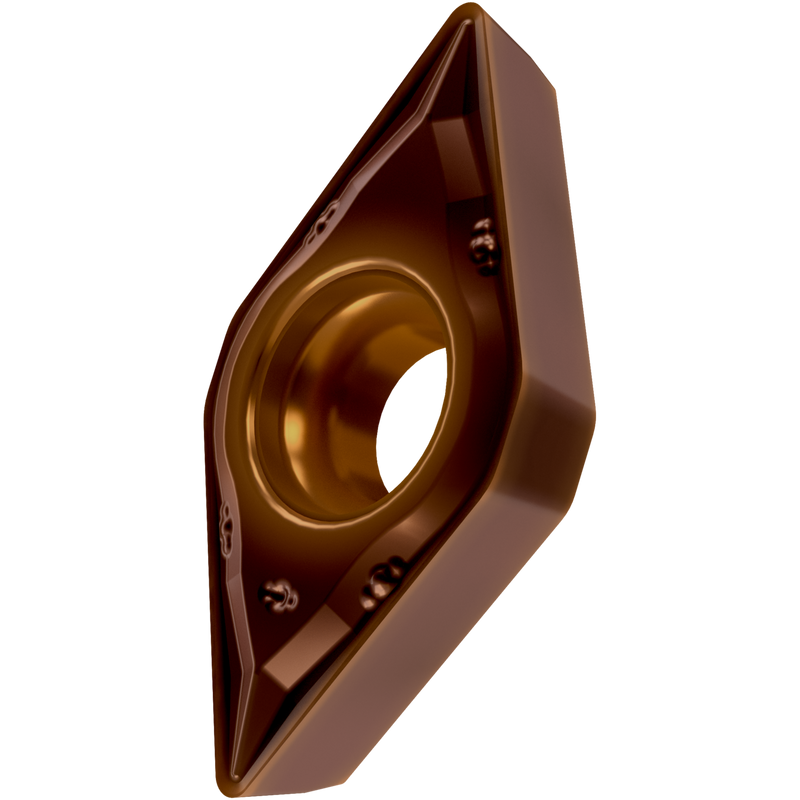

DCMT 21.50.5-FM:T8415
DCMT 21.50.5-FM:T8415

DCMT 21.50.5-FM:T8415

UGC DOR8553225
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.00 CAD - $10.00 CAD
$10.00 CAD
$10.00 CAD - $10.00 CAD
$10.00 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 0,25 pouce, épaisseur de 0,094 pouce, rayon de bec de 0,008 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM à arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 21.50.5-FM:T8415
Product Name (ISO)DCMT 070202E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553225
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus rhomboïde de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8553225
EAN3603604269506
File Type Download
DCMT 21.50.5-FM:T8415 — Line Drawing PDF Download
