DCMT 21.51-FM:T8415
DCMT 21.51-FM:T8415

DCMT 21.51-FM:T8415

UGC DOR8553227
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.43 CAD - $9.43 CAD
$9.43 CAD
$9.43 CAD - $9.43 CAD
$9.43 CAD

Vendu en lots de : 10

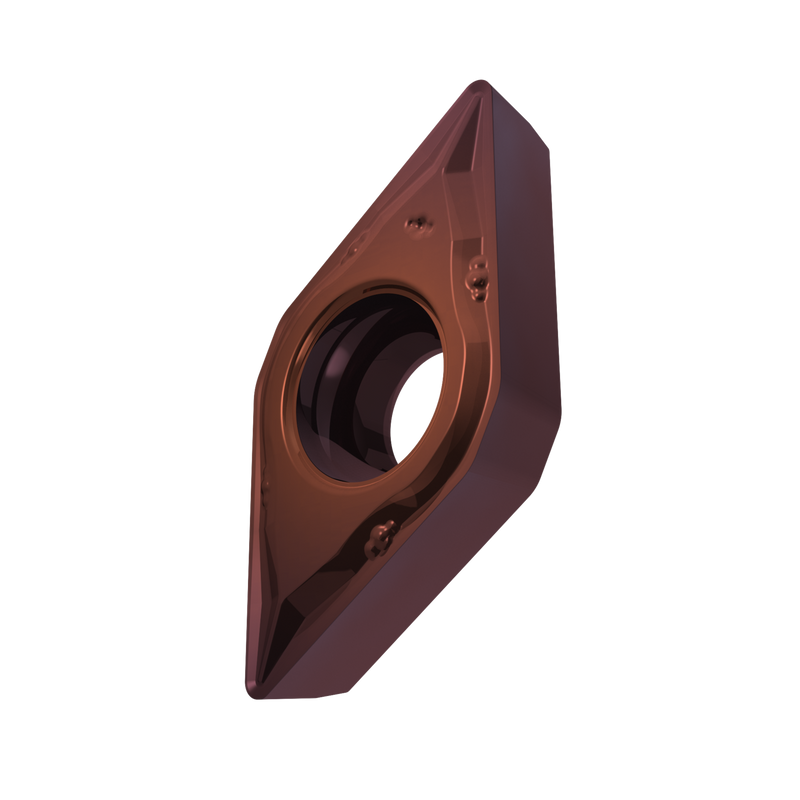

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 0,25 pouce, 0,094 pouce d'épaisseur, rayon de bec de 0,016 pouce, précision de plaçage selon la tolérance ISO classe M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 21.51-FM:T8415
Product Name (ISO)DCMT 070204E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553227
Product FamilyDCMT
Insert Geometry
Insert DesignCCMT
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553227
EAN3603604269520
File Type Download

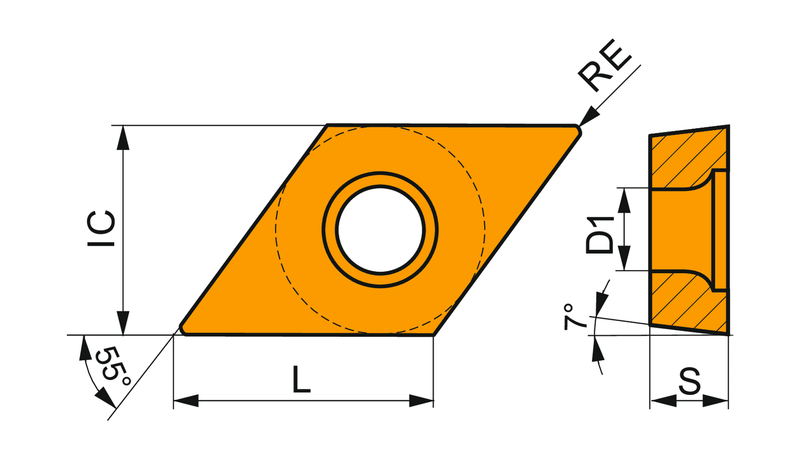

DCMT 21.51-FM:T8415 — Line Drawing PDF Download
