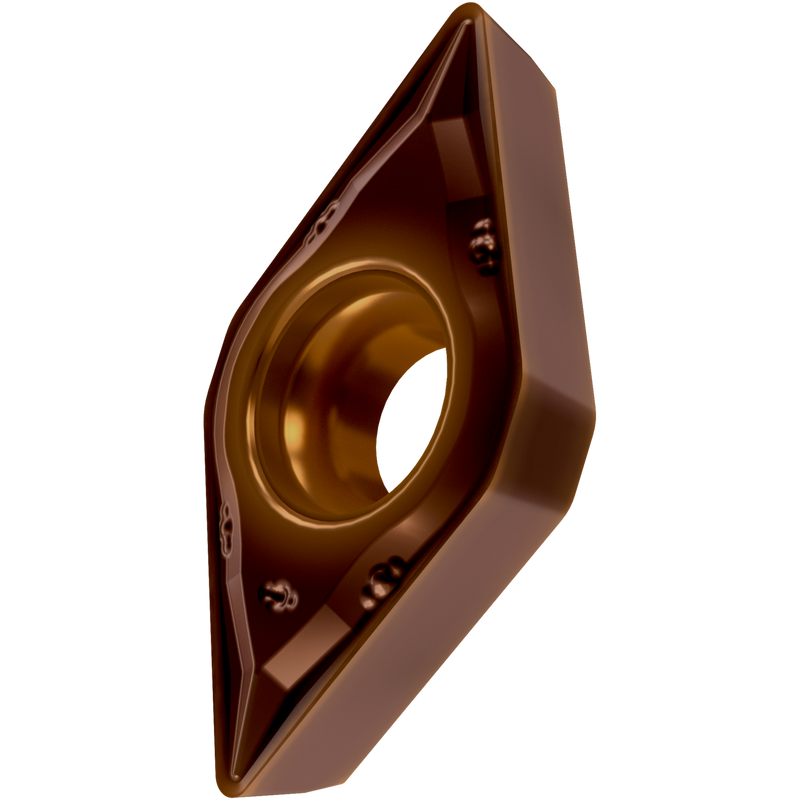

DCMT 32.50.5-FM:T8415
DCMT 32.50.5-FM:T8415

DCMT 32.50.5-FM:T8415

UGC DOR8553229
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.47 CAD - $13.47 CAD
$13.47 CAD
$13.47 CAD - $13.47 CAD
$13.47 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 9.525 mm, épaisseur de 3.96 mm, rayon de bec de 0.2 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.50.5-FM:T8415
Product Name (ISO)DCMT 11T302E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553229
Product FamilyDCMT
Insert Geometry
Insert DesignCMTD
Insert Shape Code (SC)D - angle de 55° du losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8553229
EAN3603604269544
File Type Download
DCMT 32.50.5-FM:T8415 — Line Drawing PDF Download
