DCMW 21.51:T8415
DCMW 21.51:T8415

DCMW 21.51:T8415

UGC DOR8553234
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.43 CAD - $9.43 CAD
$9.43 CAD
$9.43 CAD - $9.43 CAD
$9.43 CAD

Vendu en lots de : 10

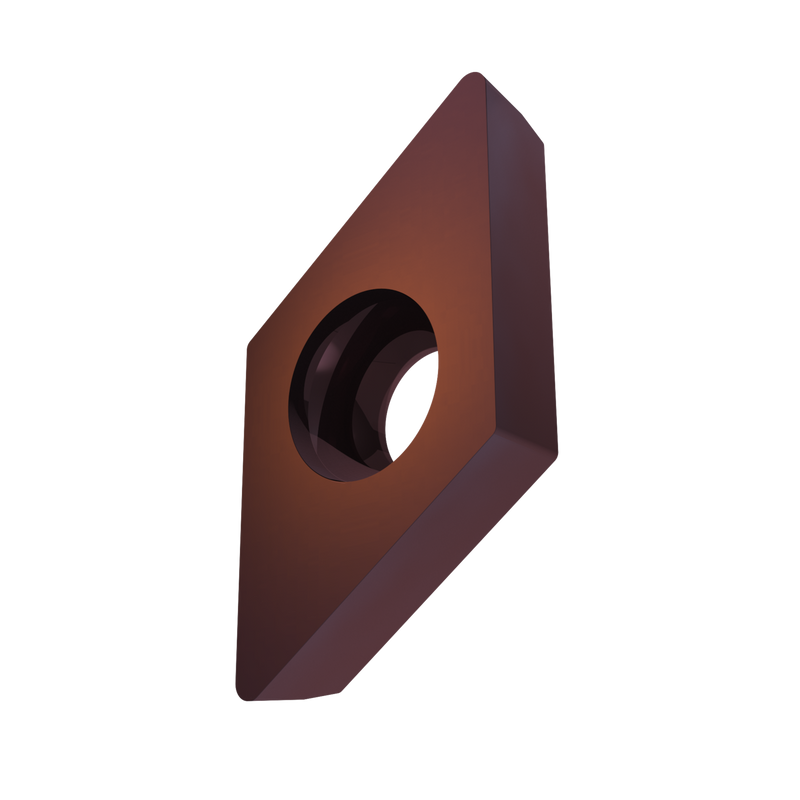

Plaquette de tournage positive simple face, rhomboïde 55° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 0,25 pouce, épaisseur de 0,094 pouce, rayon de bec de 0,016 pouce et précision de positionnement selon la classe de tolérance ISO-M, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMW 21.51:T8415
Product Name (ISO)DCMW 070204:T8415
GradeT8415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8553234
Product FamilyDCMW
Insert Geometry
Insert DesignDCMW
Insert Shape Code (SC)D - angle inclus rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number8553234
EAN3603604269599
File Type Download
DCMW 21.51:T8415 — Line Drawing PDF Download
