DCMW 32.51:T8415
DCMW 32.51:T8415

DCMW 32.51:T8415

UGC DOR8553235
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.71 CAD - $12.71 CAD
$12.71 CAD
$12.71 CAD - $12.71 CAD
$12.71 CAD

Vendu en lots de : 10

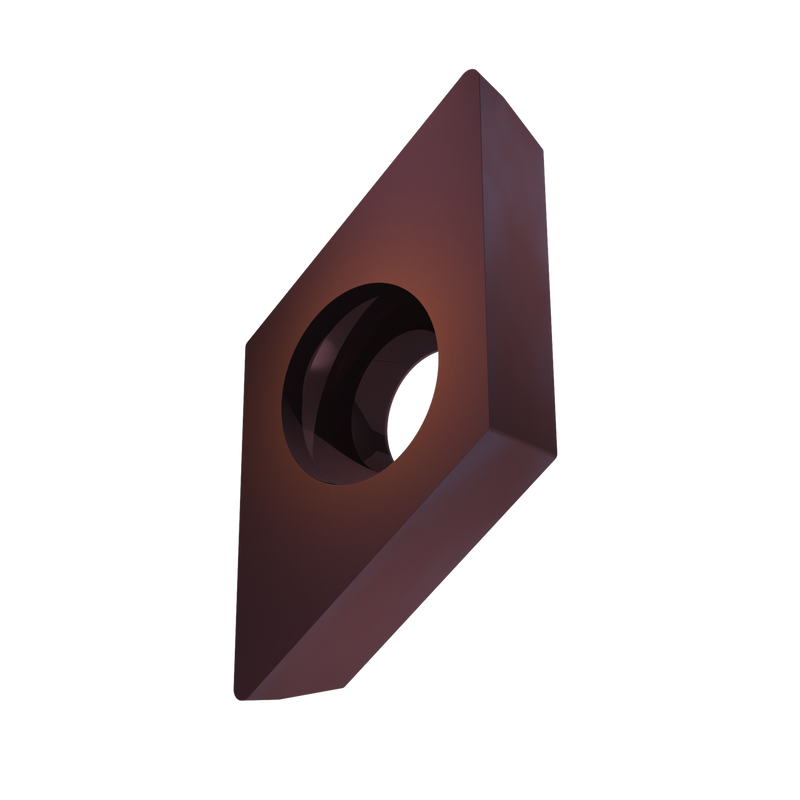

Plaquette de tournage positive simple face, rhomboïde 55° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, 0,156 pouce d'épaisseur, un rayon de bec de 0,016 pouce et une précision de positionnement selon la classe de tolérance ISO-M, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMW 32.51:T8415
Product Name (ISO)DCMW 11T304:T8415
GradeT8415
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number8553235
Product FamilyCMDC
Insert Geometry
Insert DesignDCMW
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.114"
Depth of Cut Max — mm (APMX)2.9 mm
Tool Information
Reference Numbers
EDP Number8553235
EAN3603604269605
File Type Download
DCMW 32.51:T8415 — Line Drawing PDF Download
