CEGT 2.521-SF3:T8415
CEGT 2.521-SF3:T8415

CEGT 2.521-SF3:T8415

UGC DOR8553238
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.61 CAD - $14.61 CAD
$14.61 CAD
$14.61 CAD - $14.61 CAD
$14.61 CAD

Vendu en lots de : 10

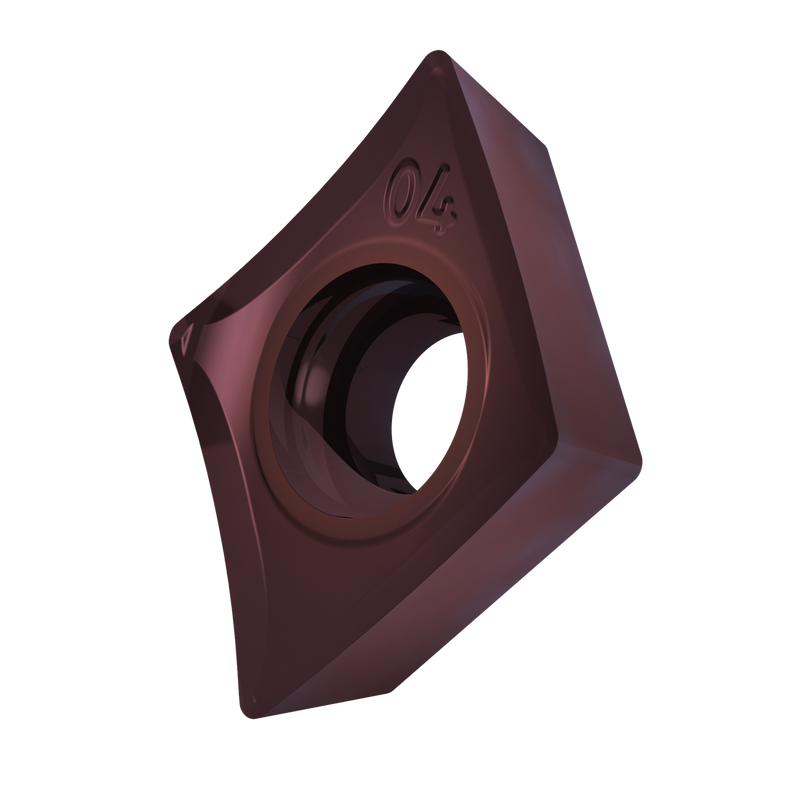

Plaquette de tournage positive simple face, rhomboïde à 75° avec dépouille de 7°, diamètre du cercle inscrit de 0,313 pouce, épaisseur de 0,125 pouce, rayon de bec de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF3 à arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)ECGT 2.521-SF3:T8415
Product Name (ISO)ECGT 080304E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553238
Product FamilyECGT

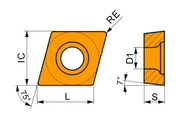

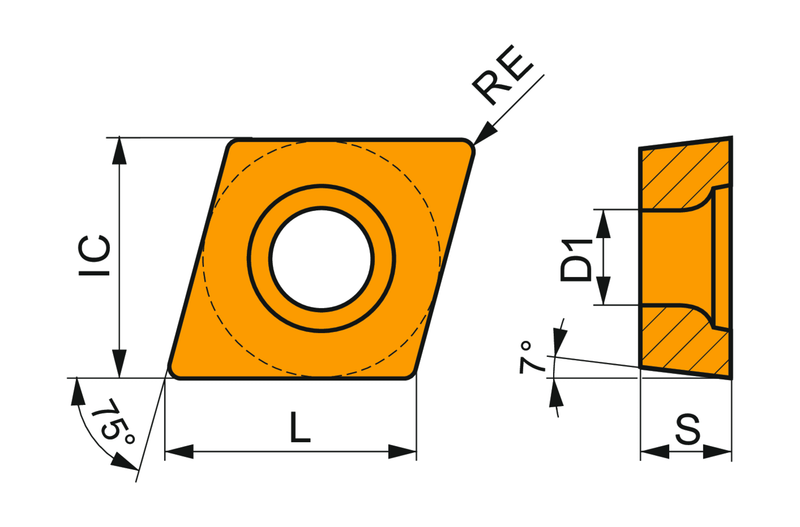

Insert Geometry
Insert DesignCEGEC
Insert Shape Code (SC)E - angle compris rhomboïdal 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number8553238
EAN3603604269636
File Type Download
CEGT 2.521-SF3:T8415 — Line Drawing PDF Download
