RCMT 10T3MOE-UR:T8415
RCMT 10T3MOE-UR:T8415

RCMT 10T3MOE-UR:T8415

UGC DOR8553241
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.21 CAD - $10.21 CAD
$10.21 CAD
$10.21 CAD - $10.21 CAD
$10.21 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, ronde avec un angle de dépouille de 7°, un diamètre de 0,394 pouce, une épaisseur de 0,156 pouce, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux UR avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOE-UR:T8415
GradeT8415
Chipbreaker (CBMD)VOUS
Product Number8553241
Product FamilyMRCT
Insert Geometry
Insert DesignCRPM
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Tool Information
Reference Numbers
EDP Number8553241
EAN3603604269667
File Type Download

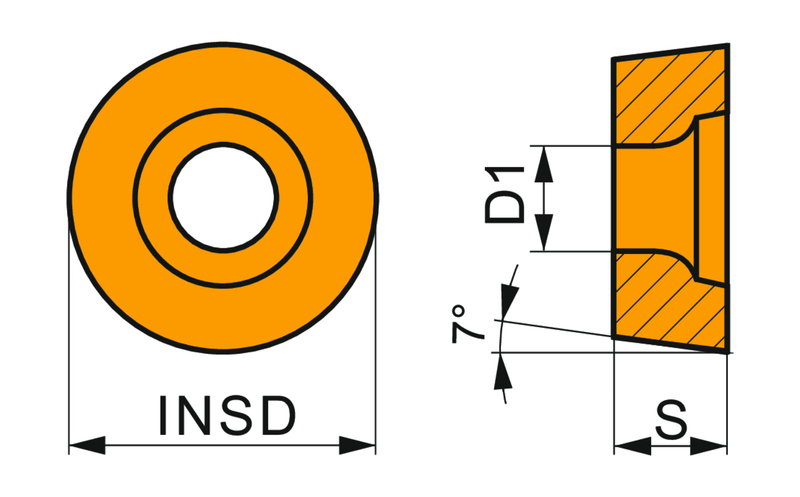

RCMT 10T3MOE-UR:T8415 — Line Drawing PDF Download
