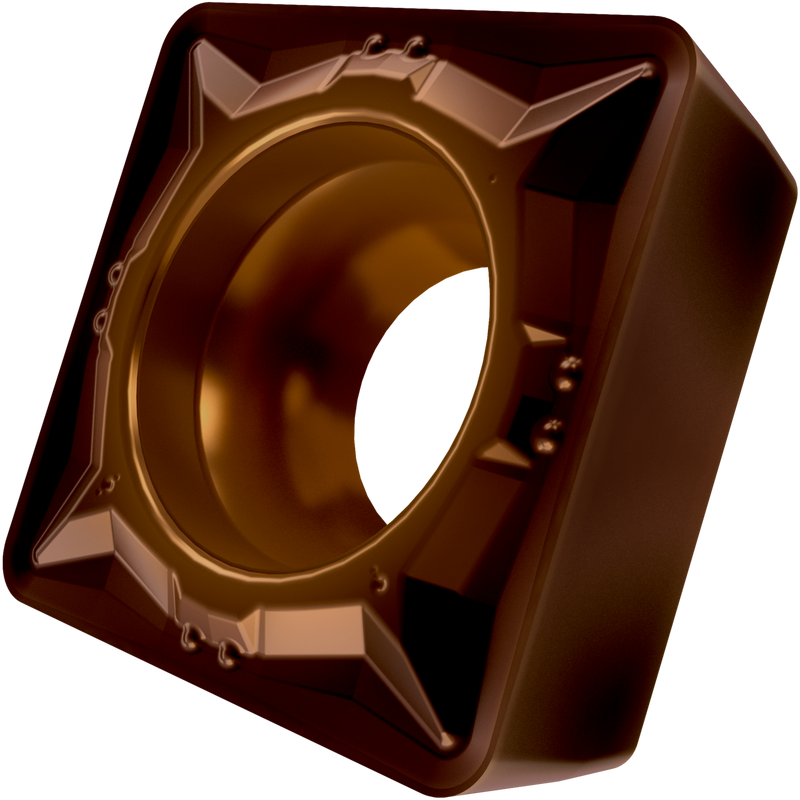

SCMT 32.51-FM:T8415
SCMT 32.51-FM:T8415

SCMT 32.51-FM:T8415

UGC DOR8553245
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.83 CAD - $10.83 CAD
$10.83 CAD
$10.83 CAD - $10.83 CAD
$10.83 CAD

Vendu en lots de : 10

Plaquette positive simple face pour tournage, carrée avec dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,156 pouce, rayon de bec de 0,016 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en qualité T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 32.51-FM:T8415
Product Name (ISO)SCMT 09T304E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553245
Product FamilySCMT
Insert Geometry
Insert DesignCSMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553245
EAN3603604269704
File Type Download
SCMT 32.51-FM:T8415 — 3D Model STP Download
SCMT 32.51-FM:T8415 — 2D Model DXF Download
SCMT 32.51-FM:T8415 — Line Drawing PDF Download
