SCMT 432-FM:T8415
SCMT 432-FM:T8415

SCMT 432-FM:T8415

UGC DOR8553248
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.21 CAD - $15.21 CAD
$15.21 CAD
$15.21 CAD - $15.21 CAD
$15.21 CAD

Vendu en lots de : 10

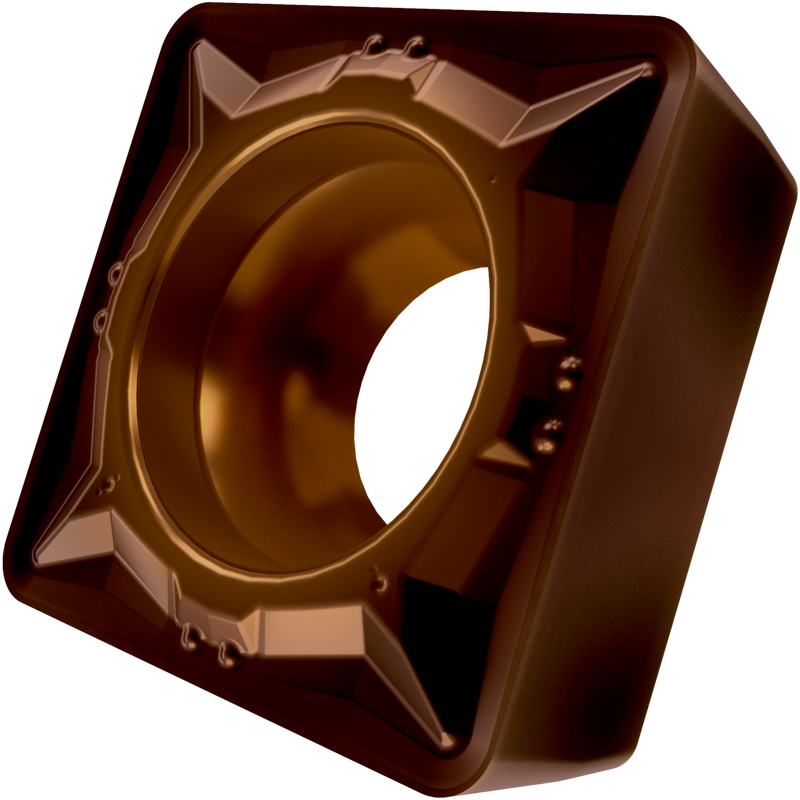

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 0,5 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 432-FM:T8415
Product Name (ISO)SCMT 120408E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553248
Product FamilySCMT

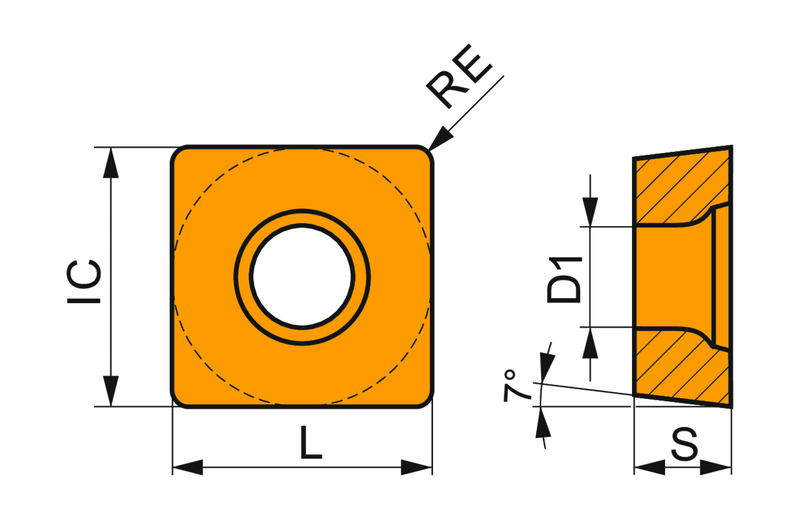

Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553248
EAN3603604269735
File Type Download
SCMT 432-FM:T8415 — 3D Model STP Download
SCMT 432-FM:T8415 — 2D Model DXF Download
SCMT 432-FM:T8415 — Line Drawing PDF Download
