TCGT 21.50.5L-SI:T8415
TCGT 21.50.5L-SI:T8415

TCGT 21.50.5L-SI:T8415

UGC DOR8553249
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.79 CAD - $16.79 CAD
$16.79 CAD
$16.79 CAD - $16.79 CAD
$16.79 CAD

Vendu en lots de : 10

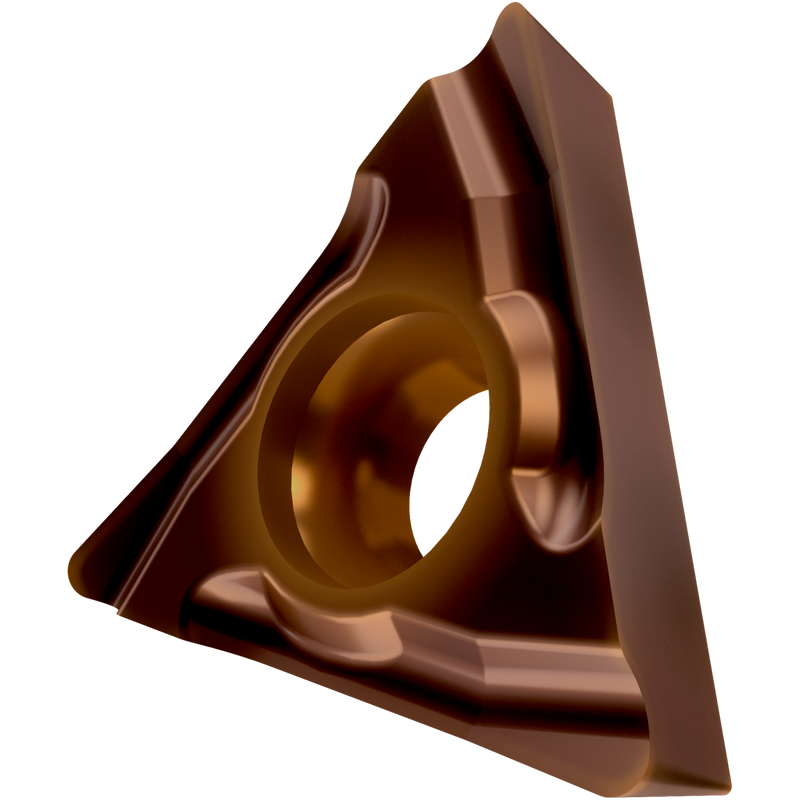

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 0,25 pouce, 0,094 pouce d'épaisseur, rayon de bec de 0,008 pouce, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SI avec arêtes de coupe arrondies, en qualité T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 21.50.5L-SI:T8415
Product Name (ISO)TCGT 110202EL-SI:T8415
GradeT8415
Chipbreaker (CBMD)Oui
Product Number8553249
Product FamilyTCGT

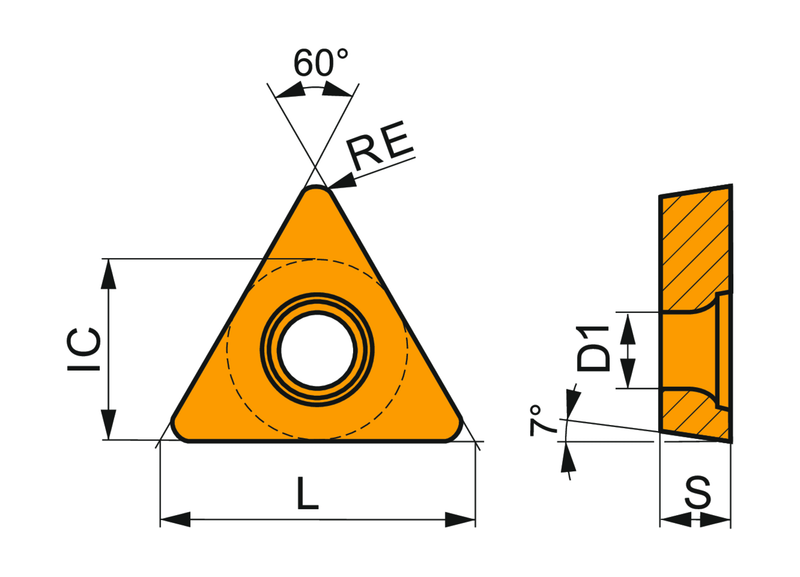

Insert Geometry
Insert DesignTCGT
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8553249
EAN3603604269742
File Type Download
TCGT 21.50.5L-SI:T8415 — Line Drawing PDF Download
