TCGT 21.51L-SI:T8415
TCGT 21.51L-SI:T8415

TCGT 21.51L-SI:T8415

UGC DOR8553251
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.83 CAD - $15.83 CAD
$15.83 CAD
$15.83 CAD - $15.83 CAD
$15.83 CAD

Vendu en lots de : 10

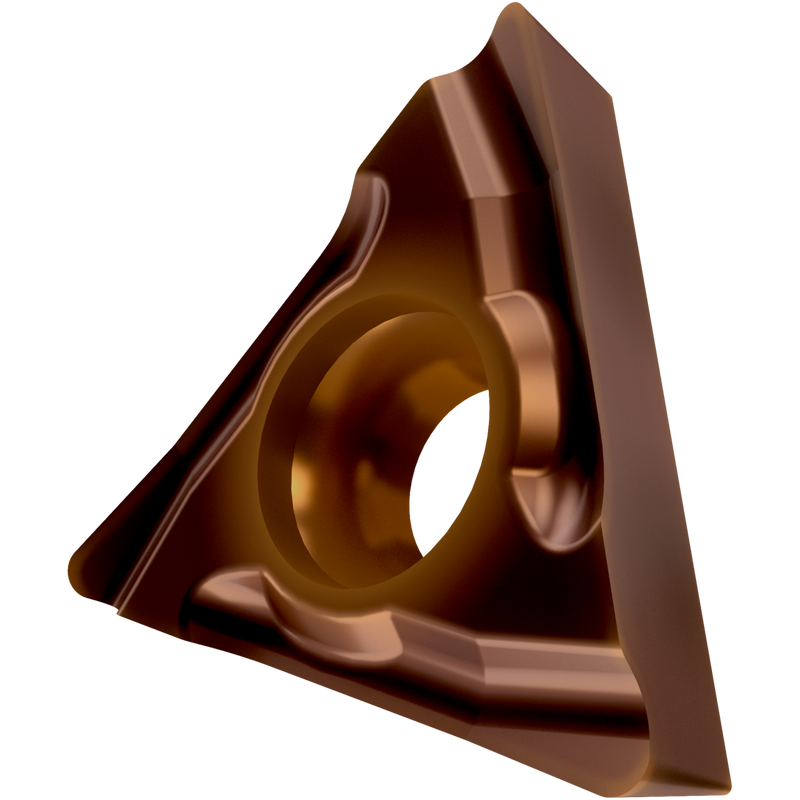

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 0,25 pouce, épaisseur de 0,094 pouce, rayon de bec de 0,016 pouce, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SI avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 21.51L-SI:T8415
Product Name (ISO)TCGT 110204EL-SI:T8415
GradeT8415
Chipbreaker (CBMD)Oui
Product Number8553251
Product FamilyTCGT

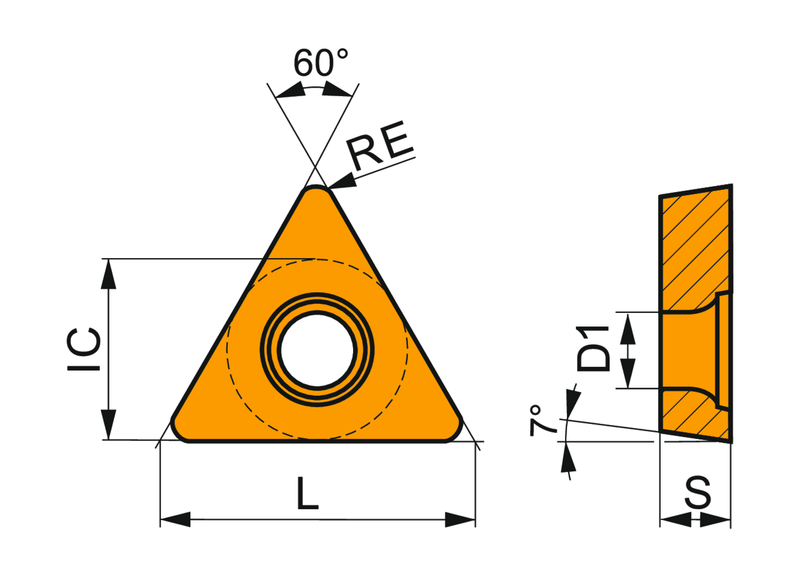

Insert Geometry
Insert DesignTGCAT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553251
EAN3603604269766
File Type Download
TCGT 21.51L-SI:T8415 — Line Drawing PDF Download
