TCGT 32.51-SF3:T8415
TCGT 32.51-SF3:T8415

TCGT 32.51-SF3:T8415

UGC DOR8553253
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.76 CAD - $19.76 CAD
$19.76 CAD
$19.76 CAD - $19.76 CAD
$19.76 CAD

Vendu en lots de : 10

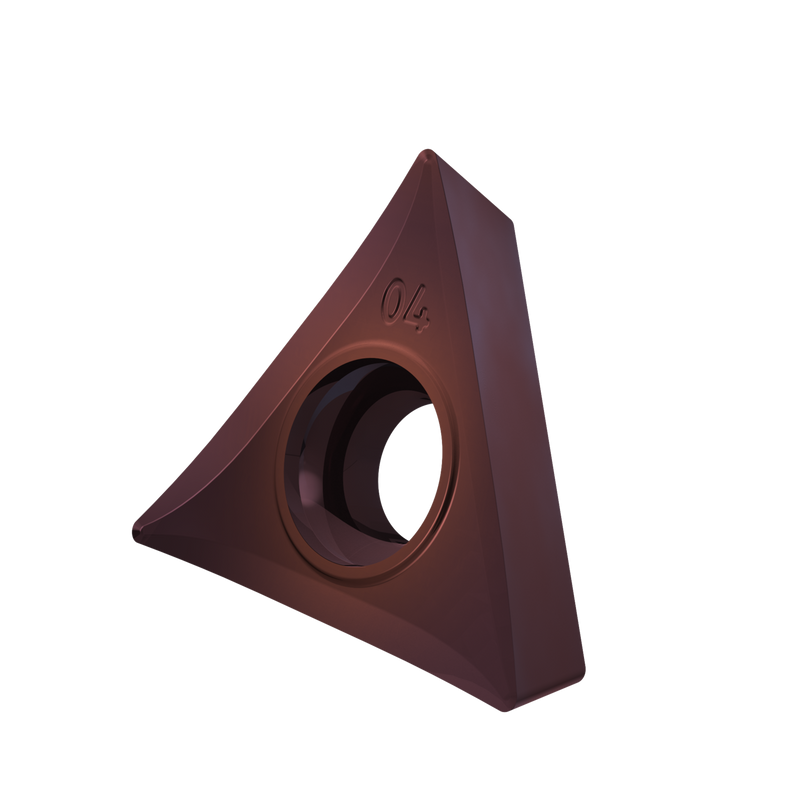

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,156 pouce, rayon de pointe de 0,016 pouce, précision de plaçage selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 32.51-SF3:T8415
Product Name (ISO)TCGT 16T304E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553253
Product FamilyGTCT
Insert Geometry
Insert DesignTCGT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number8553253
EAN3603604269780
File Type Download
TCGT 32.51-SF3:T8415 — Line Drawing PDF Download
