TCMT 32.52-RM3:T8415
TCMT 32.52-RM3:T8415

TCMT 32.52-RM3:T8415

UGC DOR8553261
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.29 CAD - $13.29 CAD
$13.29 CAD
$13.29 CAD - $13.29 CAD
$13.29 CAD

Vendu en lots de : 10

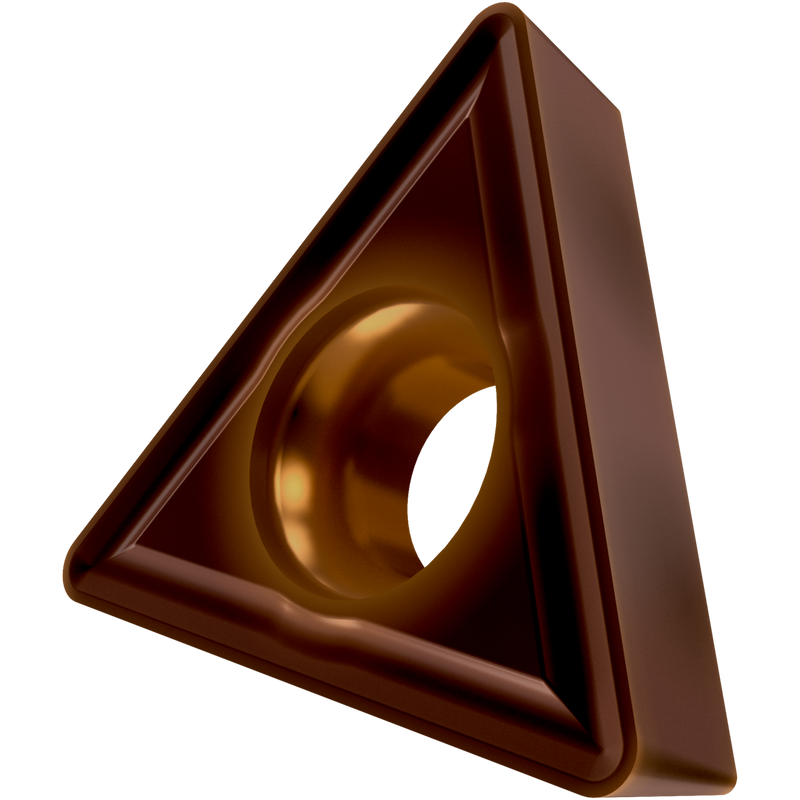

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,156 pouce, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM3 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.52-RM3:T8415
Product Name (ISO)TCMT 16T308E-RM3:T8415
GradeT8415
Chipbreaker (CBMD)RM3
Product Number8553261
Product FamilyCCMT

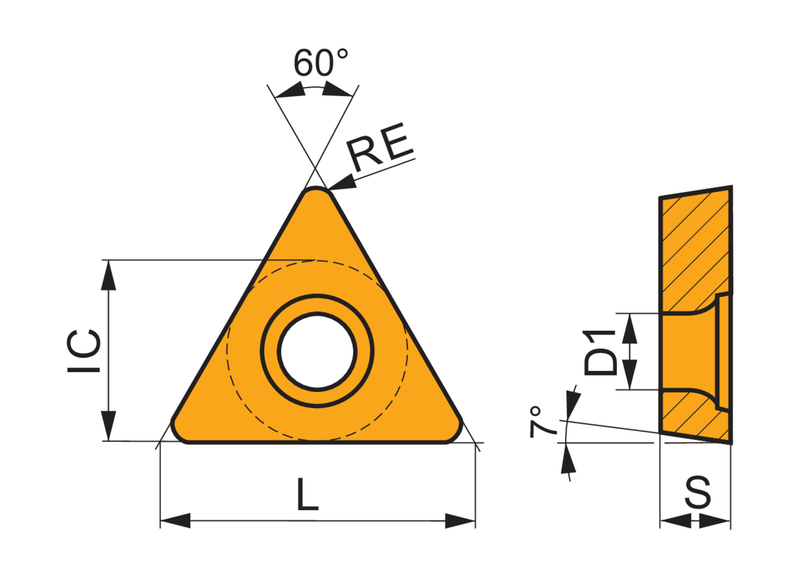

Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - angle interne triangulaire de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553261
EAN3603604269865
File Type Download
TCMT 32.52-RM3:T8415 — Line Drawing PDF Download
