VBMT 332-FM:T8415
VBMT 332-FM:T8415

VBMT 332-FM:T8415

UGC DOR8553266
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.69 CAD - $17.69 CAD
$17.69 CAD
$17.69 CAD - $17.69 CAD
$17.69 CAD

Vendu en lots de : 10

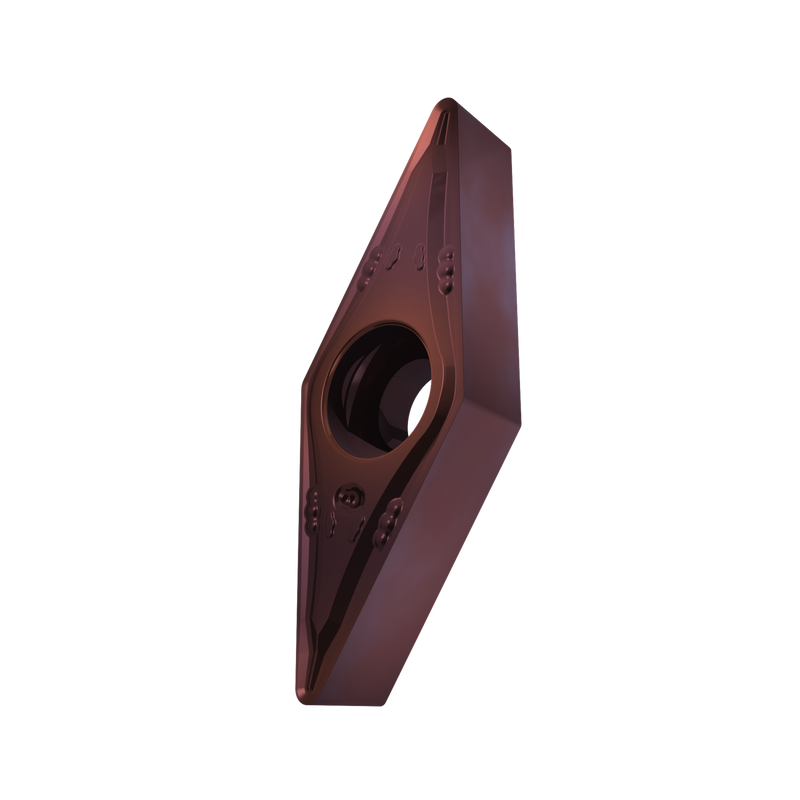

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille de 5°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,187 pouce, rayon de pointe de 0,031 pouce, précision de division selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 332-FM:T8415
Product Name (ISO)VBMT 160408E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553266
Product FamilyBVMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8553266
EAN3603604269919
File Type Download
VBMT 332-FM:T8415 — 3D Model STP Download
VBMT 332-FM:T8415 — 2D Model DXF Download
VBMT 332-FM:T8415 — Line Drawing PDF Download
