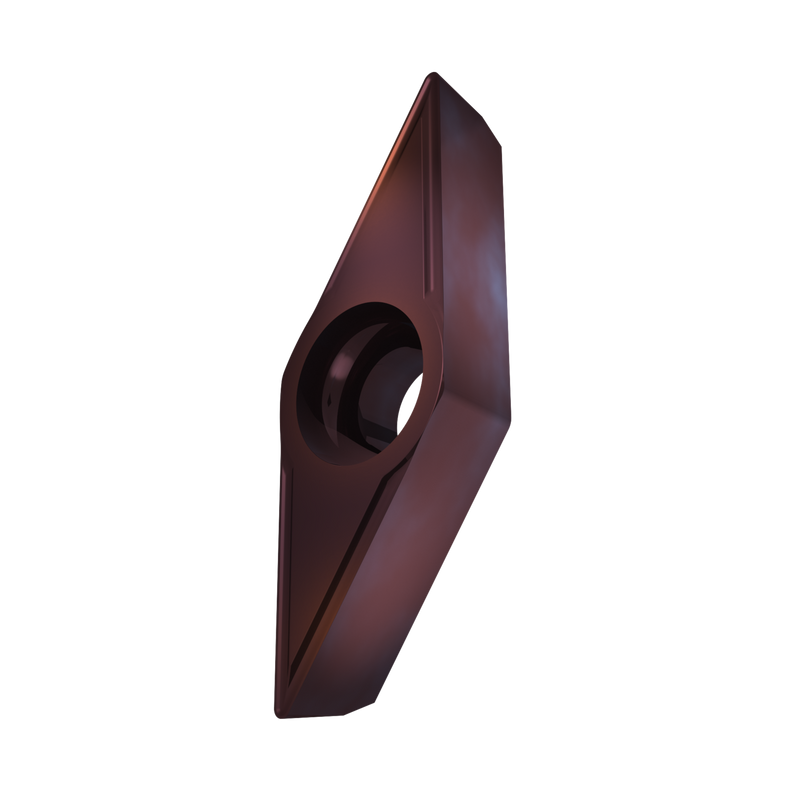

VCGT 1.21.50.5-FF2:T8415
VCGT 1.21.50.5-FF2:T8415

VCGT 1.21.50.5-FF2:T8415

UGC DOR8553267
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.97 CAD - $19.97 CAD
$19.97 CAD
$19.97 CAD - $19.97 CAD
$19.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde à 35° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 0,156 pouce, épaisseur de 0,094 pouce, rayon de bec de 0,008 pouce, précision d'indexage selon la classe de tolérance ISO G, brise-copeaux FF2 avec arêtes vives arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 1.21.50.5-FF2:T8415
Product Name (ISO)VCGT 070202E-FF2:T8415
GradeT8415
Chipbreaker (CBMD)FF2
Product Number8553267
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle fermé de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number8553267
EAN3603604269926
File Type Download
VCGT 1.21.50.5-FF2:T8415 — Line Drawing PDF Download
