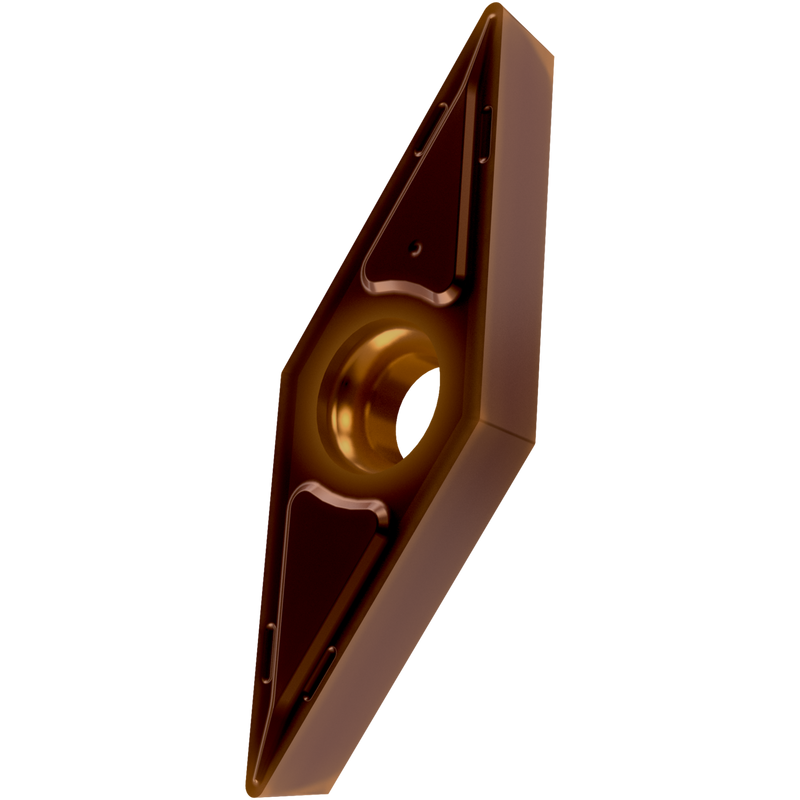

VCGT 1.21.51-FF2:T8415
VCGT 1.21.51-FF2:T8415

VCGT 1.21.51-FF2:T8415

UGC DOR8553269
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.83 CAD - $18.83 CAD
$18.83 CAD
$18.83 CAD - $18.83 CAD
$18.83 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïdale 35° avec dépouille 7°, diamètre du cercle inscrit 0,156 pouce, épaisseur 0,094 pouce, rayon de bec 0,016 pouce, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux FF2 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 1.21.51-FF2:T8415
Product Name (ISO)VCGT 070204E-FF2:T8415
GradeT8415
Chipbreaker (CBMD)FF2
Product Number8553269
Product FamilyVCCG
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553269
EAN3603604269940
File Type Download
VCGT 1.21.51-FF2:T8415 — Line Drawing PDF Download
