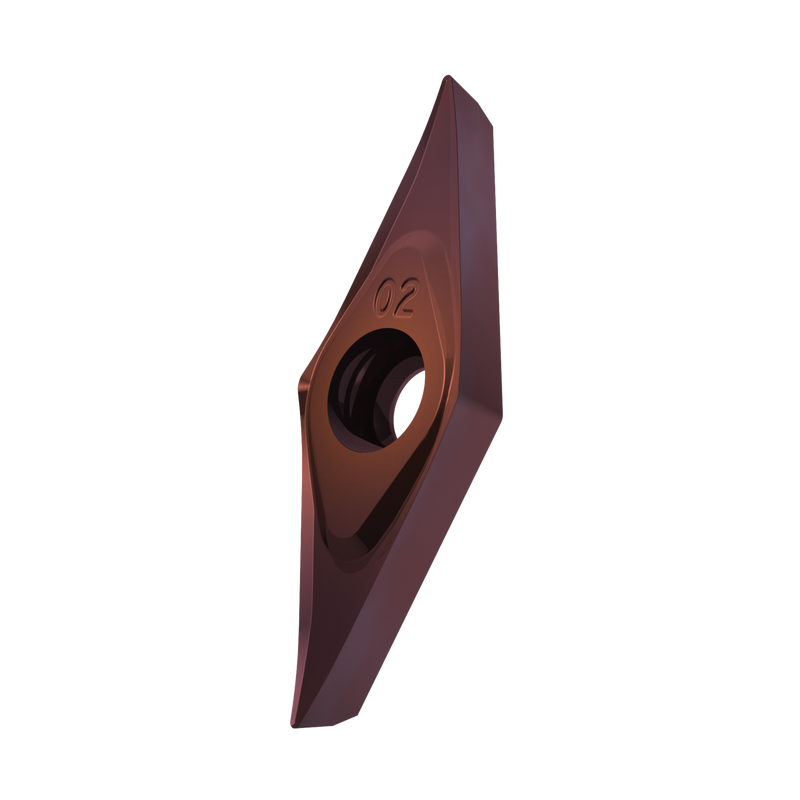

VCGT 21.50.5-SF3:T8415
VCGT 21.50.5-SF3:T8415

VCGT 21.50.5-SF3:T8415

UGC DOR8553271
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.57 CAD - $26.57 CAD
$26.57 CAD
$26.57 CAD - $26.57 CAD
$26.57 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille de 7°, diamètre du cercle inscrit de 0,25 pouce, épaisseur de 0,094 pouce, rayon de bec de 0,008 pouce, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 21.50.5-SF3:T8415
Product Name (ISO)VCGT 110202E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553271
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.58 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number8553271
EAN3603604269964
File Type Download
VCGT 21.50.5-SF3:T8415 — Line Drawing PDF Download
