VCGT 221-SF3:T8415
VCGT 221-SF3:T8415

VCGT 221-SF3:T8415

UGC DOR8553273
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.11 CAD - $25.11 CAD
$25.11 CAD
$25.11 CAD - $25.11 CAD
$25.11 CAD

Vendu en lots de : 10

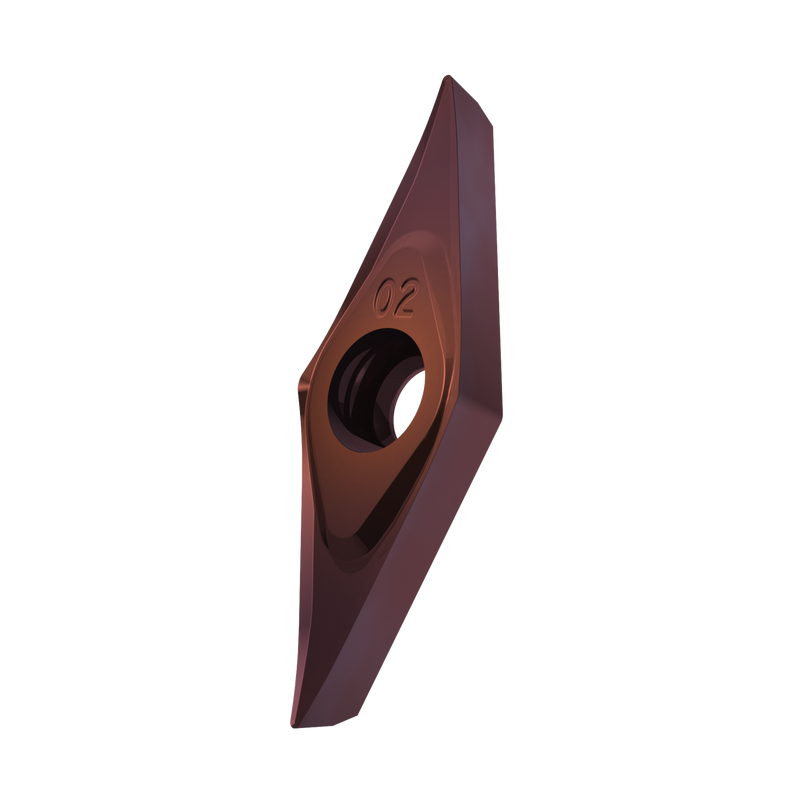

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 6,35 mm, épaisseur 3,18 mm, rayon de bec 0,4 mm, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 221-SF3:T8415
Product Name (ISO)VCGT 110304E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553273
Product FamilyVCGT
Insert Geometry
Insert DesignTCGV
Insert Shape Code (SC)V - angle d'inclinaison 35° en forme de losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number8553273
EAN3603604269988
File Type Download
VCGT 221-SF3:T8415 — Line Drawing PDF Download
