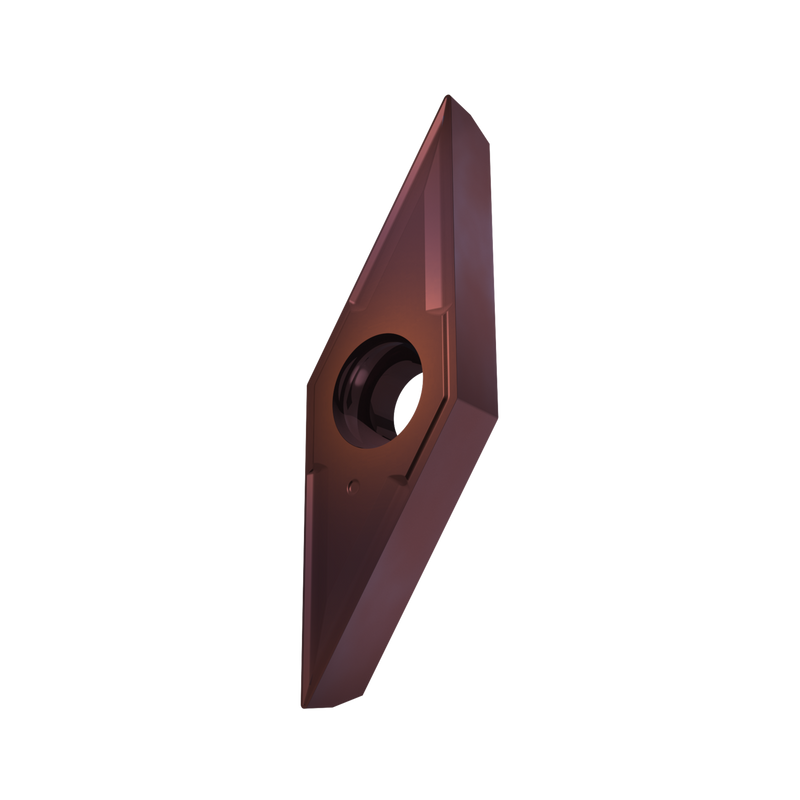

VCGT 2.522-NF2:T8415
VCGT 2.522-NF2:T8415

VCGT 2.522-NF2:T8415

UGC DOR8553278
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.64 CAD - $15.64 CAD
$15.64 CAD
$15.64 CAD - $15.64 CAD
$15.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 0,313 pouce, épaisseur de 0,125 pouce, rayon de bec de 0,031 pouce, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux NF2 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.522-NF2:T8415
Product Name (ISO)VCGT 130308E-NF2:T8415
GradeT8415
Chipbreaker (CBMD)NF2
Product Number8553278
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - losange 35° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number8553278
EAN3603604270038
File Type Download
VCGT 2.522-NF2:T8415 — Line Drawing PDF Download
