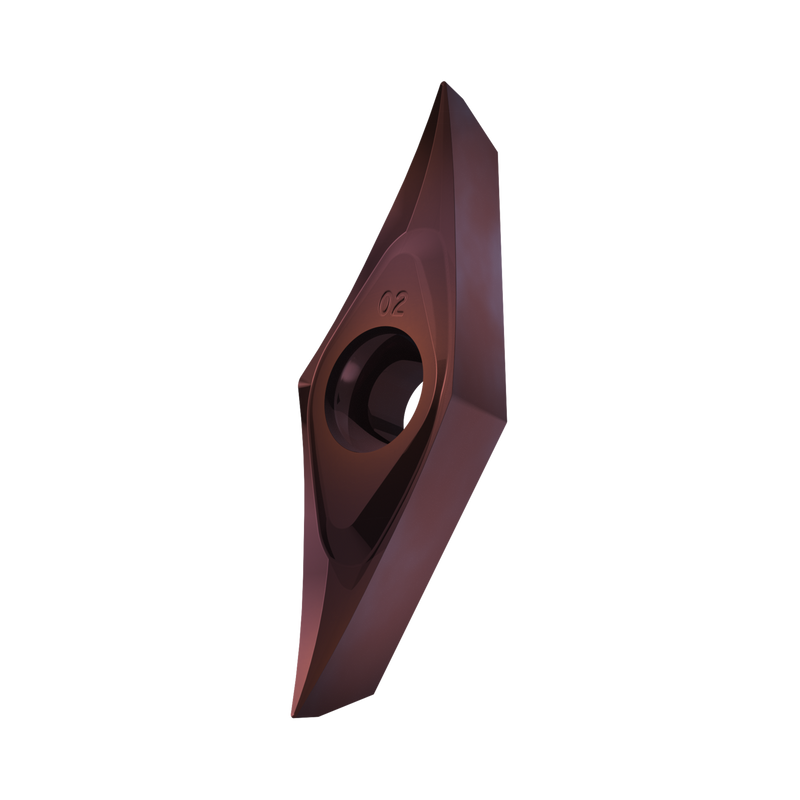

VCGT 330.5-SF3:T8415
VCGT 330.5-SF3:T8415

VCGT 330.5-SF3:T8415

UGC DOR8553280
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.29 CAD - $29.29 CAD
$29.29 CAD
$29.29 CAD - $29.29 CAD
$29.29 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,008 pouce, précision de coupe selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 330.5-SF3:T8415
Product Name (ISO)VCGT 160402E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553280
Product FamilyTVGC
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.01 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number8553280
EAN3603604270052
File Type Download
VCGT 330.5-SF3:T8415 — Line Drawing PDF Download
