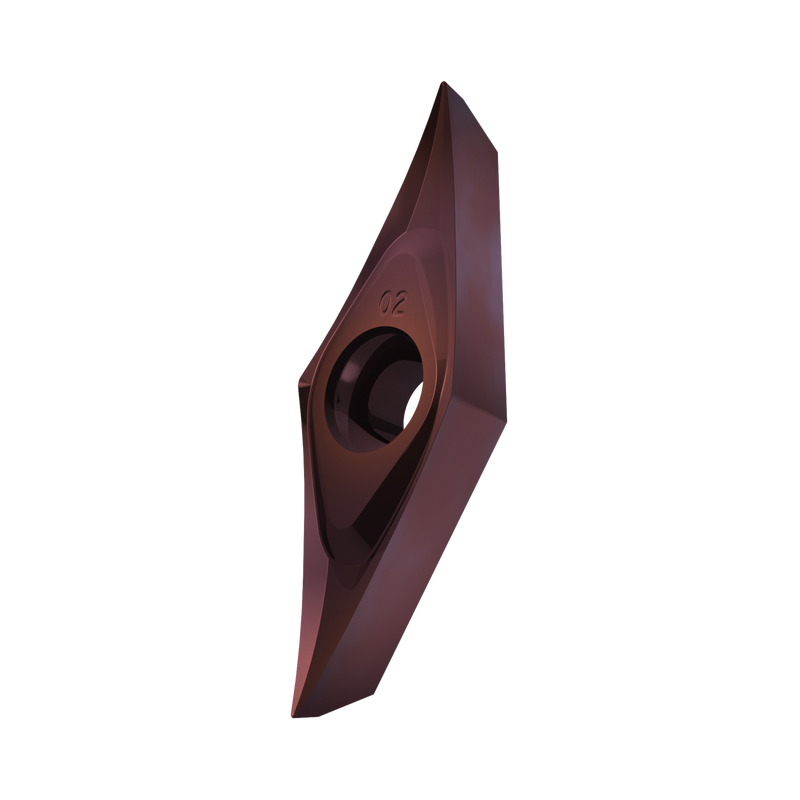

VCGT 333-SF3:T8415
VCGT 333-SF3:T8415

VCGT 333-SF3:T8415

UGC DOR8553283
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.61 CAD - $27.61 CAD
$27.61 CAD
$27.61 CAD - $27.61 CAD
$27.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,047 pouce, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3 à arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 333-SF3:T8415
Product Name (ISO)VCGT 160412E-SF3:T8415
GradeT8415
Chipbreaker (CBMD)SF3
Product Number8553283
Product FamilyVCCG
Insert Geometry
Insert DesignCGTV
Insert Shape Code (SC)V - angle inclus 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.01 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.126"
Depth of Cut Max — mm (APMX)3.2 mm
Tool Information
Reference Numbers
EDP Number8553283
EAN3603604270083
File Type Download
VCGT 333-SF3:T8415 — Line Drawing PDF Download
