VCGX 2.520.2FR-FF2:T8415
VCGX 2.520.2FR-FF2:T8415

VCGX 2.520.2FR-FF2:T8415

UGC DOR8553287
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.61 CAD - $20.61 CAD
$20.61 CAD
$20.61 CAD - $20.61 CAD
$20.61 CAD

Vendu en lots de : 10

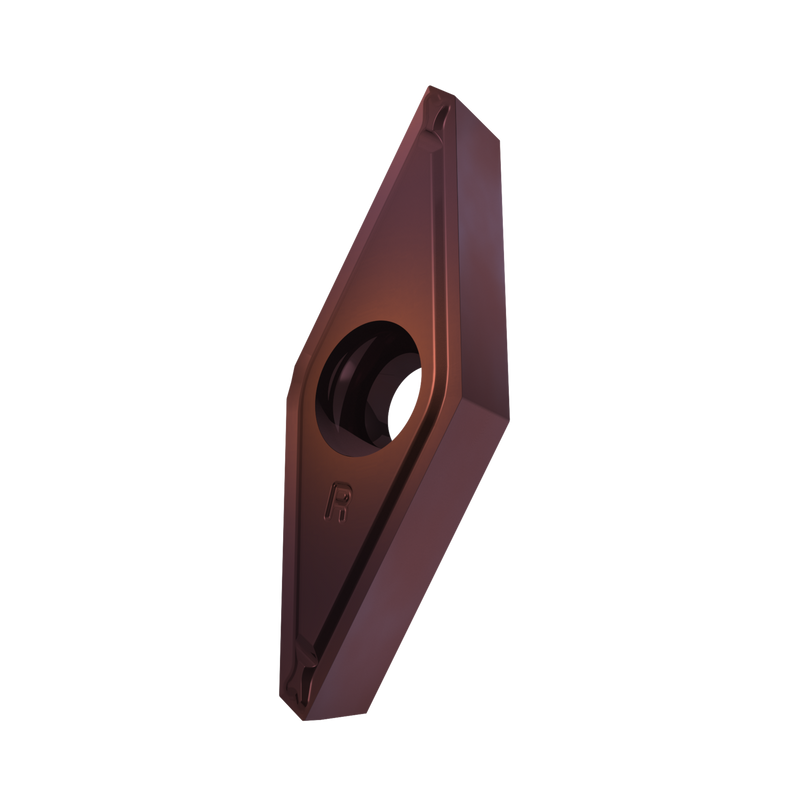

Plaquette de tournage positive de conception spéciale, rhomboïde 35° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 0,313 pouce, épaisseur de 0,125 pouce, rayon de bec de 0,004 pouce, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux FF2 avec des arêtes de coupe vives, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGX 2.520.2FR-FF2:T8415
Product Name (ISO)VCGX 130301FR-FF2:T8415
GradeT8415
Chipbreaker (CBMD)FF2
Product Number8553287
Product FamilyVCGX
Insert Geometry
Insert DesignVCGX
Insert Shape Code (SC)V - angle de 35° inclus (rhombe)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.004"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number8553287
EAN3603604270120
File Type Download

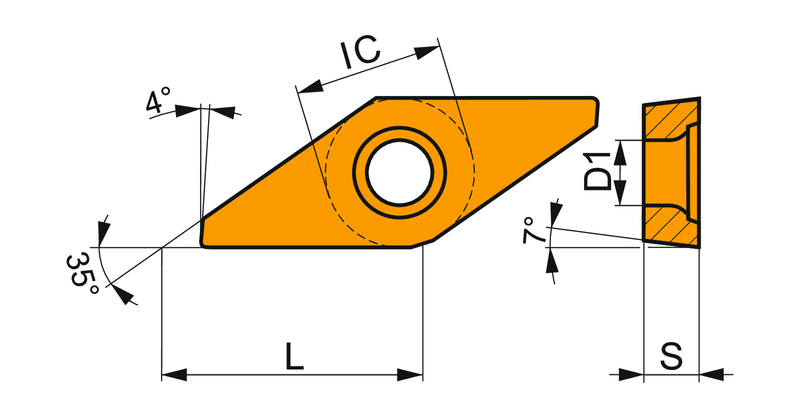

VCGX 2.520.2FR-FF2:T8415 — Line Drawing PDF Download
