VCMW 221:T8415
VCMW 221:T8415

VCMW 221:T8415

UGC DOR8553288
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.69 CAD - $16.69 CAD
$16.69 CAD
$16.69 CAD - $16.69 CAD
$16.69 CAD

Vendu en lots de : 10

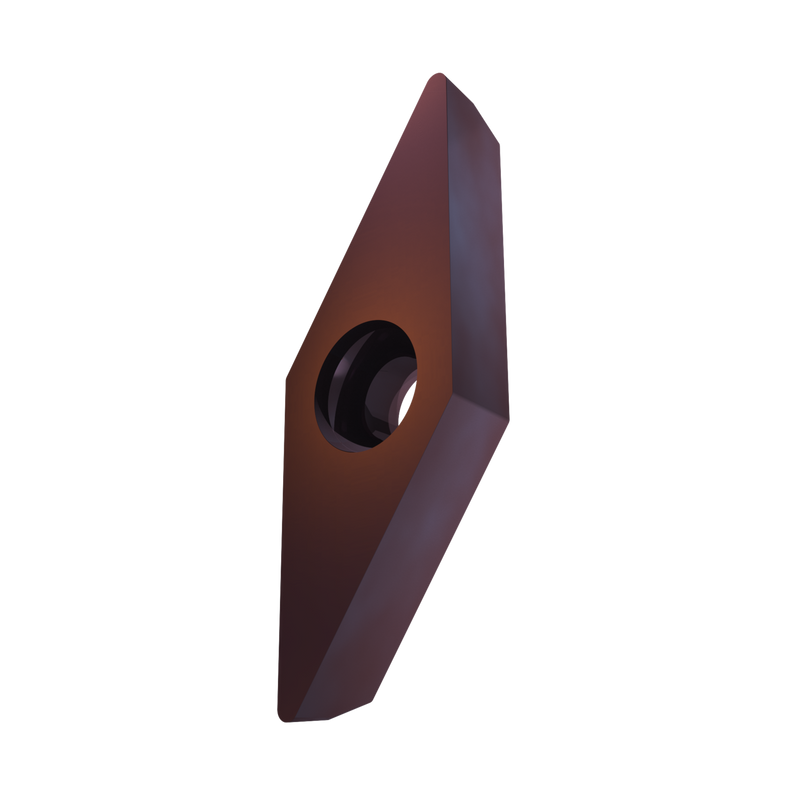

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 0,25 pouce, 0,125 pouce d'épaisseur, rayon de pointe de 0,016 pouce et précision de positionnement selon la classe de tolérance ISO-M, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMW 221:T8415
Product Name (ISO)VCMW 110304:T8415
GradeT8415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8553288
Product FamilyVCMW
Insert Geometry
Insert DesignVCMW
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.094"
Depth of Cut Max — mm (APMX)2.4 mm
Tool Information
Reference Numbers
EDP Number8553288
EAN3603604270137
File Type Download
VCMW 221:T8415 — Line Drawing PDF Download
