VCMW 331:T8415
VCMW 331:T8415

VCMW 331:T8415

UGC DOR8553289
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.69 CAD - $17.69 CAD
$17.69 CAD
$17.69 CAD - $17.69 CAD
$17.69 CAD

Vendu en lots de : 10

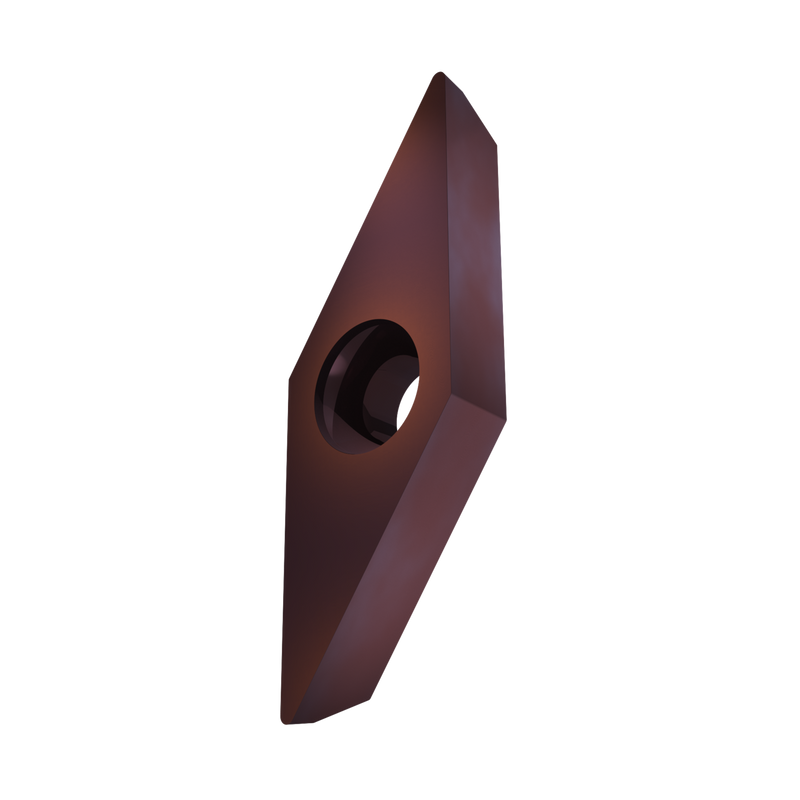

Plaquette de tournage positive simple face, rhomboïde à 35° avec dépouille de 7°, diamètre du cercle inscrit de 0,375 pouce, épaisseur de 0,187 pouce, rayon de bec de 0,016 pouce et précision d'indexage selon la classe de tolérance ISO-M, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMW 331:T8415
Product Name (ISO)VCMW 160404:T8415
GradeT8415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8553289
Product FamilyVCMW
Insert Geometry
Insert DesignVCMW
Insert Shape Code (SC)V - angulaire 35° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.146"
Depth of Cut Max — mm (APMX)3.7 mm
Tool Information
Reference Numbers
EDP Number8553289
EAN3603604270144
File Type Download
VCMW 331:T8415 — Line Drawing PDF Download
