WCMT 32.51-FM:T8415
WCMT 32.51-FM:T8415

WCMT 32.51-FM:T8415

UGC DOR8553291
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.93 CAD - $15.93 CAD
$15.93 CAD
$15.93 CAD - $15.93 CAD
$15.93 CAD

Vendu en lots de : 10

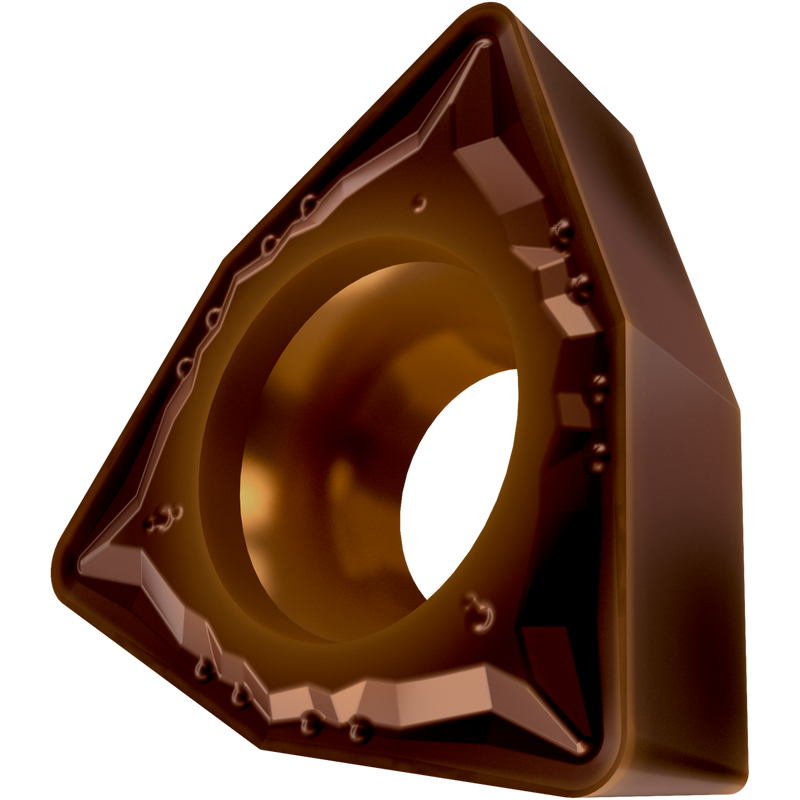

Plaquette de tournage positive simple face, trigon 80° avec dépouille 7°, diamètre du cercle inscrit 0,375 pouce, épaisseur 0,156 pouce, rayon de bec 0,016 pouce, précision d'indexage selon classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8415.

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 32.51-FM:T8415
Product Name (ISO)WCMT 06T304E-FM:T8415
GradeT8415
Chipbreaker (CBMD)FM
Product Number8553291
Product FamilySCMA

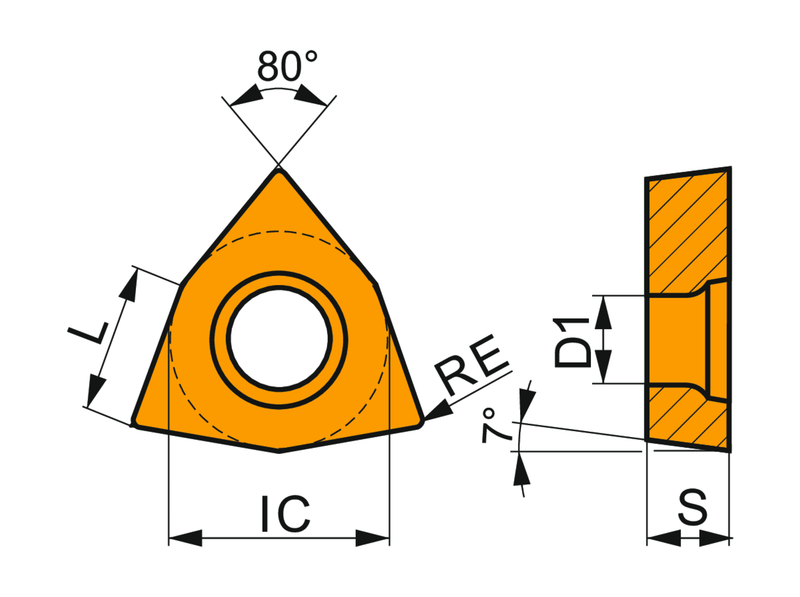

Insert Geometry
Insert DesignCMTM
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8553291
EAN3603604270168
File Type Download
WCMT 32.51-FM:T8415 — Line Drawing PDF Download
