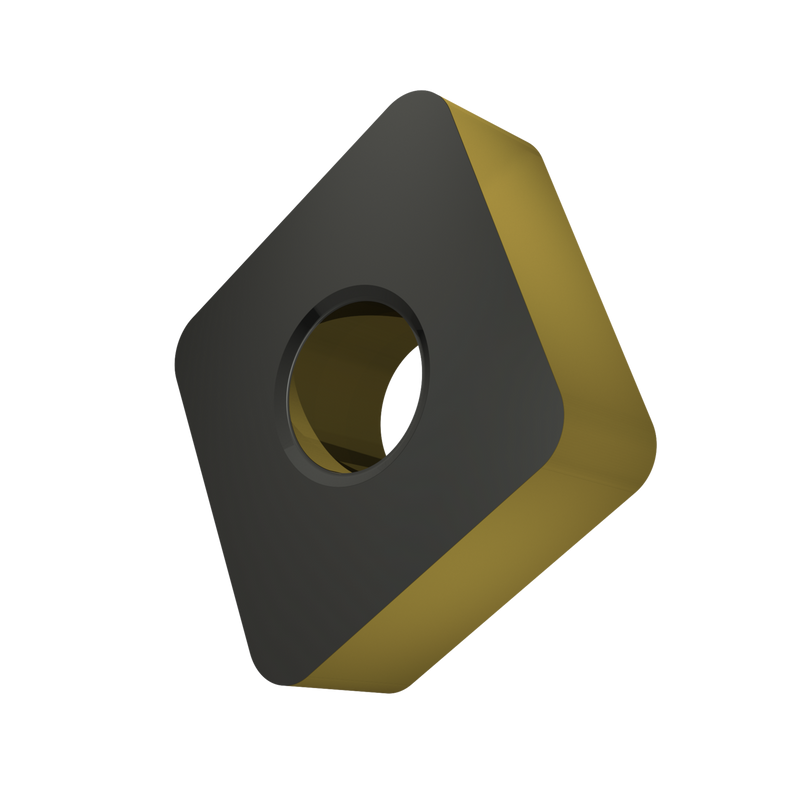

CNMA 434:T5415

CNMA 434:T5415

UGC DOR8716725
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde à 80° avec un cercle inscrit de 1/2" de diamètre, 3/16" d'épaisseur, rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO M, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMA 434:T5415
Product Name (ISO)CNMA 120416:T5415
GradeT5415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8716725
Product FamilyCMNA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - losange, angle interne de 80°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716725
EAN3603604495035
Material Group Suitability
K — Cast Iron Usage principal
H — Hardened Materials Usage possible
File Type Download
CNMA 434:T5415 — Line Drawing PDF Download
