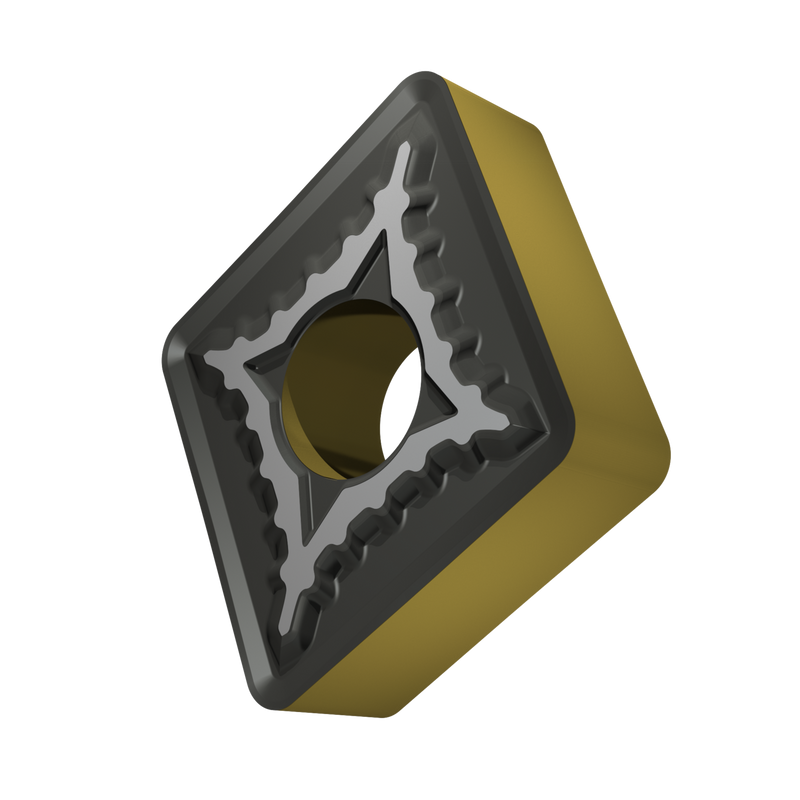

CNMG 433-SM:T5415

CNMG 433-SM:T5415

UGC DOR8716780
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double-face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-SM:T5415
Product Name (ISO)CNMG 120412E-SM:T5415
GradeT5415
Chipbreaker (CBMD)SM
Product Number8716780
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboédrique
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716780
EAN3603604495080
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
CNMG 433-SM:T5415 — Line Drawing PDF Download
