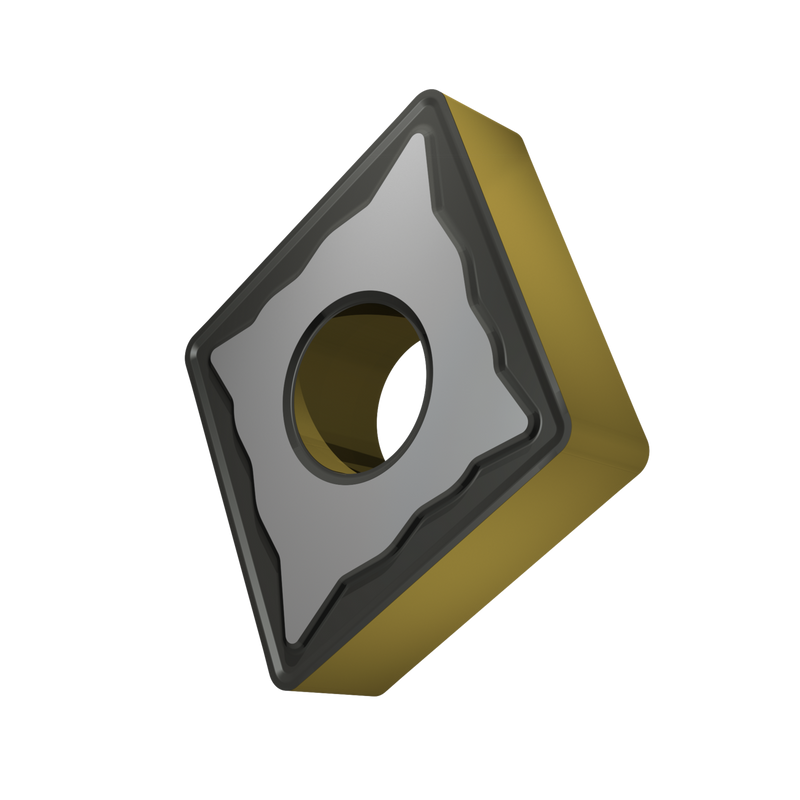

CNMG 643-KR:T5415

CNMG 643-KR:T5415

UGC DOR8716787
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.19 CAD - $31.19 CAD
$31.19 CAD
$31.19 CAD - $31.19 CAD
$31.19 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 3/4", épaisseur de 1/4", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux KR, en nuance T5415, un carbure WC-Co revêtu MT-CVD de la plage ISO K10 - K25, pour l'usinage moyen à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 643-KR:T5415
Product Name (ISO)CNMG 190612E-KR:T5415
GradeT5415
Chipbreaker (CBMD)Corée du Sud
Product Number8716787
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle interne rhombique de 80°
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716787
EAN3603604495158
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
CNMG 643-KR:T5415 — Line Drawing PDF Download
