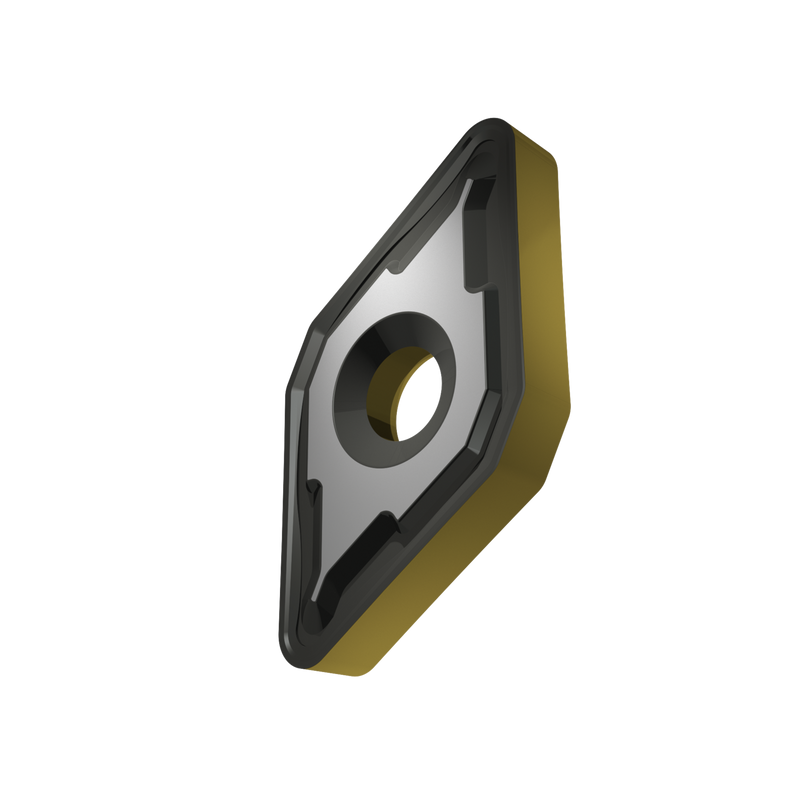

DNMG 444-R:T5415

DNMG 444-R:T5415

UGC DOR8716800
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.97 CAD - $22.97 CAD
$22.97 CAD
$22.97 CAD - $22.97 CAD
$22.97 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, rhomboïde à 55° avec cercle inscrit de 1/2" de diamètre, 1/4" d'épaisseur, rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux R, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage moyen à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 444-R:T5415
Product Name (ISO)DNMG 150616E-R:T5415
GradeT5415
Chipbreaker (CBMD)R
Product Number8716800
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle d'inclinaison rhomboïdal 55°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716800
EAN3603604495288
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
DNMG 444-R:T5415 — Line Drawing PDF Download
