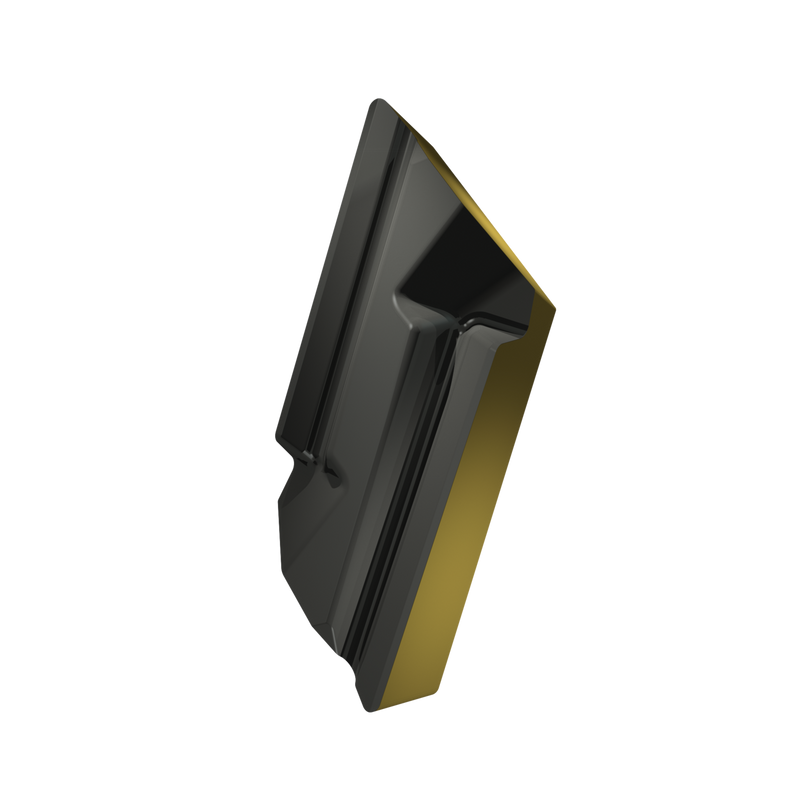

KNUX 160405R-32:T5415

KNUX 160405R-32:T5415

UGC DOR8716803
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.47 CAD - $27.47 CAD
$27.47 CAD
$27.47 CAD - $27.47 CAD
$27.47 CAD

Vendu en lots de : 10

Plaquette négative spéciale, en parallélogramme à 55°, avec une arête principale de 16 mm, épaisseur 4,76 mm, rayon de bec 0,5 mm et une précision de positionnement selon la classe de tolérance ISO-U, brise-copeaux 32, en nuance T5415, un carbure WC-Co revêtu MT-CVD, pour l'usinage moyen à lourd avec un outil de tournage à droite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160405R-32:T5415
GradeT5415
Chipbreaker (CBMD)32
Product Number8716803
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme 55° angle inclus
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716803
EAN3603604495318
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
KNUX 160405R-32:T5415 — Line Drawing PDF Download
