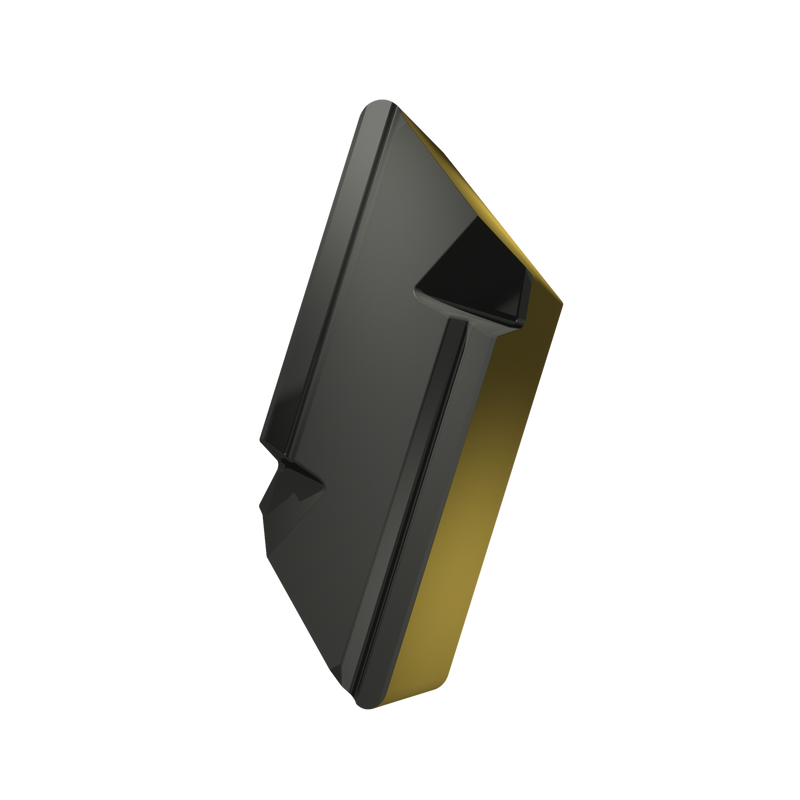

KNUX 160410SR-73:T5415

KNUX 160410SR-73:T5415

UGC DOR8716804
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.07 CAD - $23.07 CAD
$23.07 CAD
$23.07 CAD - $23.07 CAD
$23.07 CAD

Vendu en lots de : 10

Plaquette négative spéciale pour tournage, parallélogramme à 55° avec arête principale de 16 mm, 4,76 mm d'épaisseur, rayon de bec de 1 mm, précision de positionnement selon classe de tolérance ISO-U, brise-copeaux 73 avec arêtes de coupe arrondies avec facette, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage moyen à lourd de fontes et de fontes avec un outil de tournage à droite

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KNUX 160410SR-73:T5415
GradeT5415
Chipbreaker (CBMD)73
Product Number8716804
Product FamilyKNUX
Insert Geometry
Insert DesignKNUX
Insert Shape Code (SC)K - parallélogramme angle inclus de 55°
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716804
EAN3603604495325
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
KNUX 160410SR-73:T5415 — Line Drawing PDF Download
