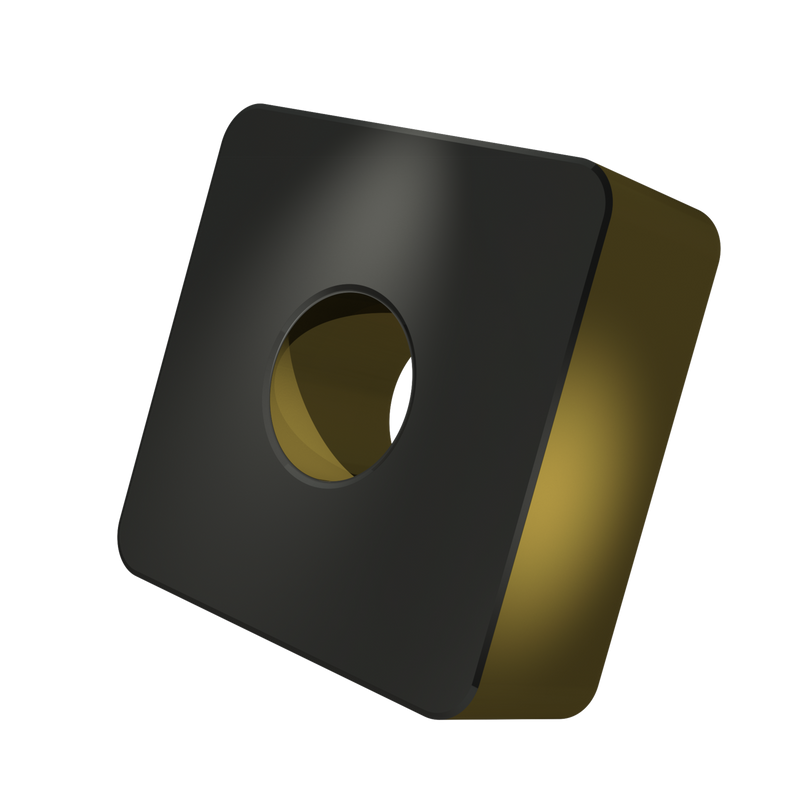

SNMA 866:T5415

SNMA 866:T5415

UGC DOR8716806
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.86 CAD - $61.86 CAD
$61.86 CAD
$61.86 CAD - $61.86 CAD
$61.86 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 1", épaisseur 3/8", rayon de bec 3/32" et précision de positionnement selon la classe de tolérance ISO M, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage moyen à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMA 866:T5415
Product Name (ISO)SNMA 250924:T5415
GradeT5415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8716806
Product FamilyANEM
Insert Geometry
Insert DesignSNMA
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716806
EAN3603604495349
Material Group Suitability
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SNMA 866:T5415 — Line Drawing PDF Download
