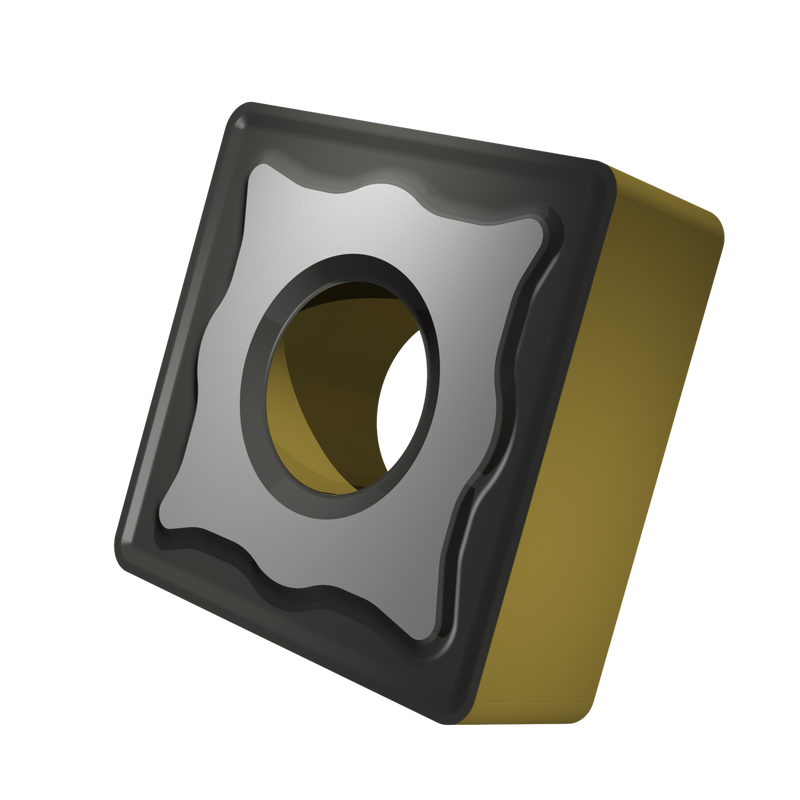

SNMG 432-KR:T5415

SNMG 432-KR:T5415

UGC DOR8716807
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.04 CAD - $14.04 CAD
$14.04 CAD
$14.04 CAD - $14.04 CAD
$14.04 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée, avec cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux KR, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la plage ISO K10 - K25, pour l'usinage moyen à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-KR:T5415
Product Name (ISO)SNMG 120408E-KR:T5415
GradeT5415
Chipbreaker (CBMD)Corée du Sud
Product Number8716807
Product FamilyGNM
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.0315"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716807
EAN3603604495356
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SNMG 432-KR:T5415 — Line Drawing PDF Download
