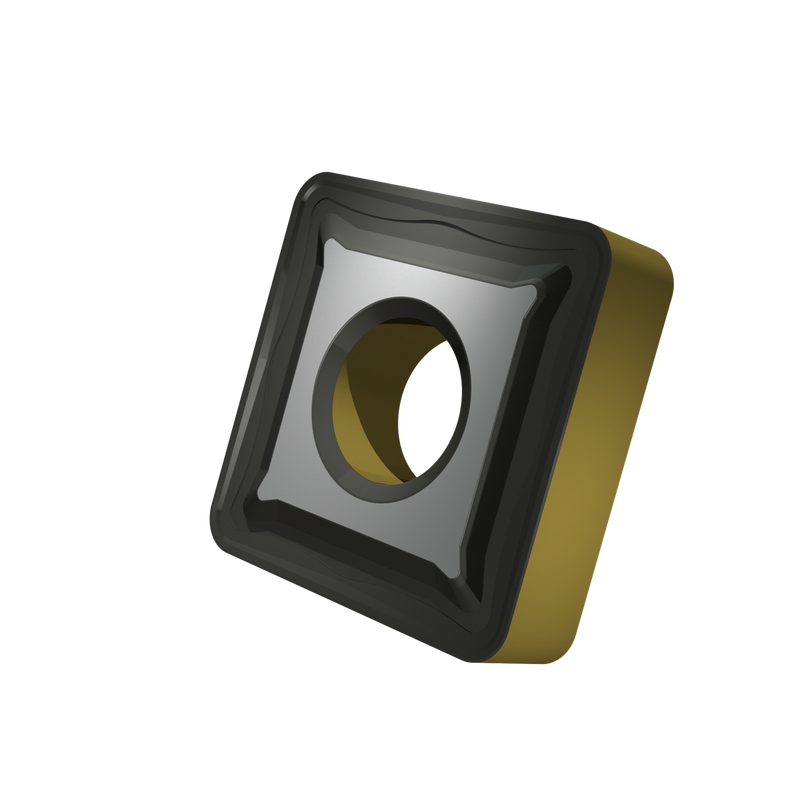

SNMG 544-R:T5415

SNMG 544-R:T5415

UGC DOR8716813
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec diamètre du cercle inscrit de 5/8", épaisseur de 1/4", rayon de bec de 1/16" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux R, en nuance T9315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage moyen à lourd de fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 544-R:T5415
Product Name (ISO)SNMG 150616E-R:T5415
GradeT5415
Chipbreaker (CBMD)R
Product Number8716813
Product FamilyGTCN
Insert Geometry
Insert DesignGMES
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716813
EAN3603604495417
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SNMG 544-R:T5415 — Line Drawing PDF Download
