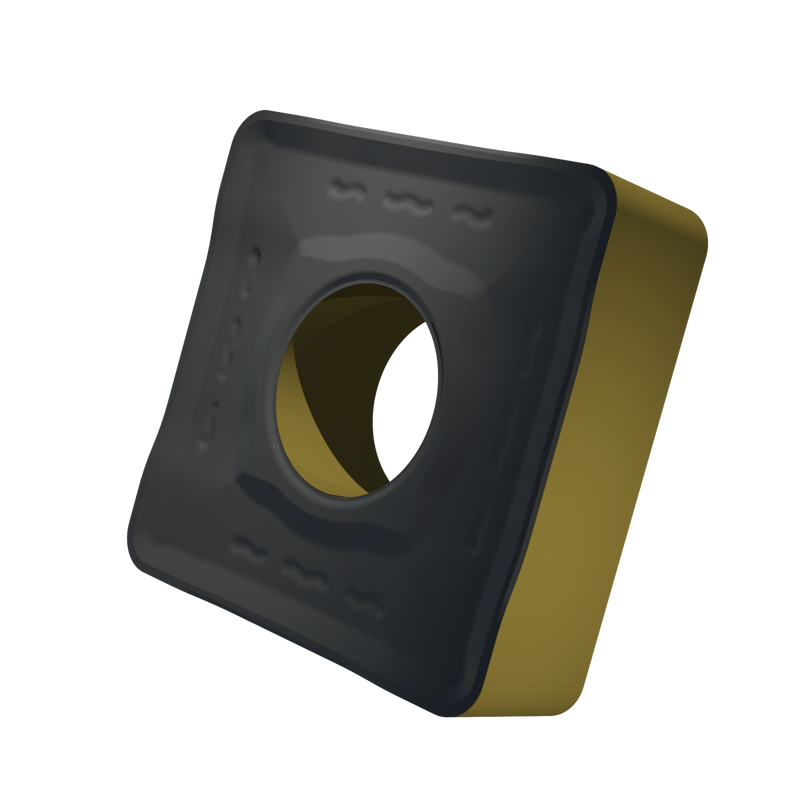

SNMM 644-NR2:T5415

SNMM 644-NR2:T5415

UGC DOR8716816
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.14 CAD - $30.14 CAD
$30.14 CAD
$30.14 CAD - $30.14 CAD
$30.14 CAD

Vendu en lots de : 10

Plaquette négative double face pour tournage, carrée avec diamètre du cercle inscrit de 3/4", épaisseur de 1/4", rayon de bec de 1/16" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NR2, en nuance T5415, un carbure WC-Co revêtu MT-CVD de la gamme ISO K10 - K25, pour l'usinage moyen à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 644-NR2:T5415
Product Name (ISO)SNMM 190616E-NR2:T5415
GradeT5415
Chipbreaker (CBMD)NR2
Product Number8716816
Product FamilyMNMS
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716816
EAN3603604495448
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
SNMM 644-NR2:T5415 — Line Drawing PDF Download
