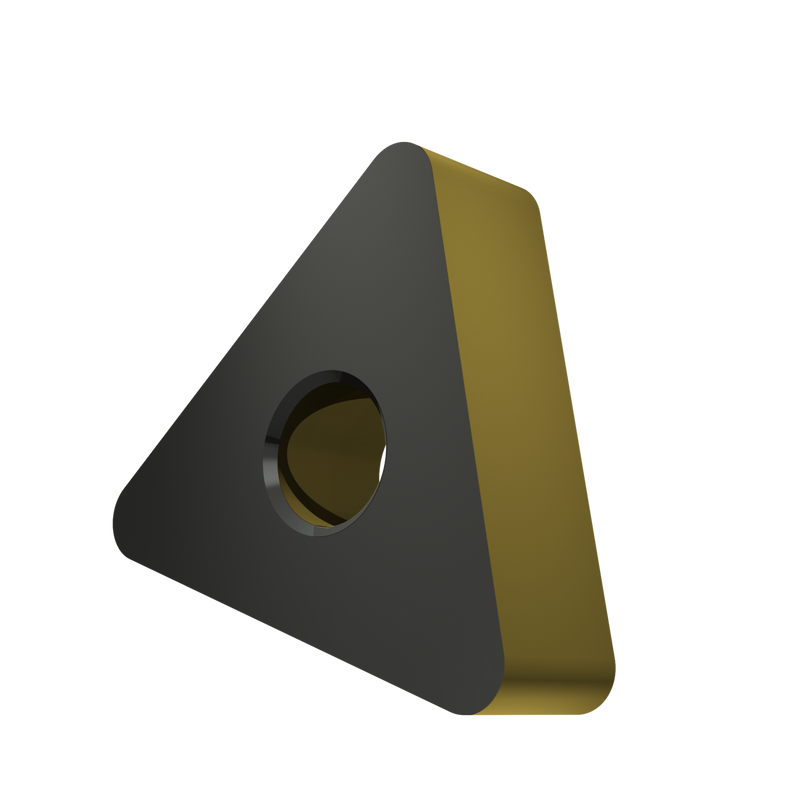

TNMA 333:T5415

TNMA 333:T5415

UGC DOR8716817
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.97 CAD - $11.97 CAD
$11.97 CAD
$11.97 CAD - $11.97 CAD
$11.97 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 3/8", une épaisseur de 3/16", un rayon de bec de 1/32" et une précision d'indexage selon la classe de tolérance ISO-M, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la plage ISO K10 - K25, pour l'usinage moyen à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMA 333:T5415
Product Name (ISO)TNMA 160412:T5415
GradeT5415
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number8716817
Product FamilyTNMA
Insert Geometry
Insert DesignTNMAM
Insert Shape Code (SC)T - angle de 60° inclus triangulaire
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.0472"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716817
EAN3603604495455
Material Group Suitability
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
TNMA 333:T5415 — Line Drawing PDF Download
