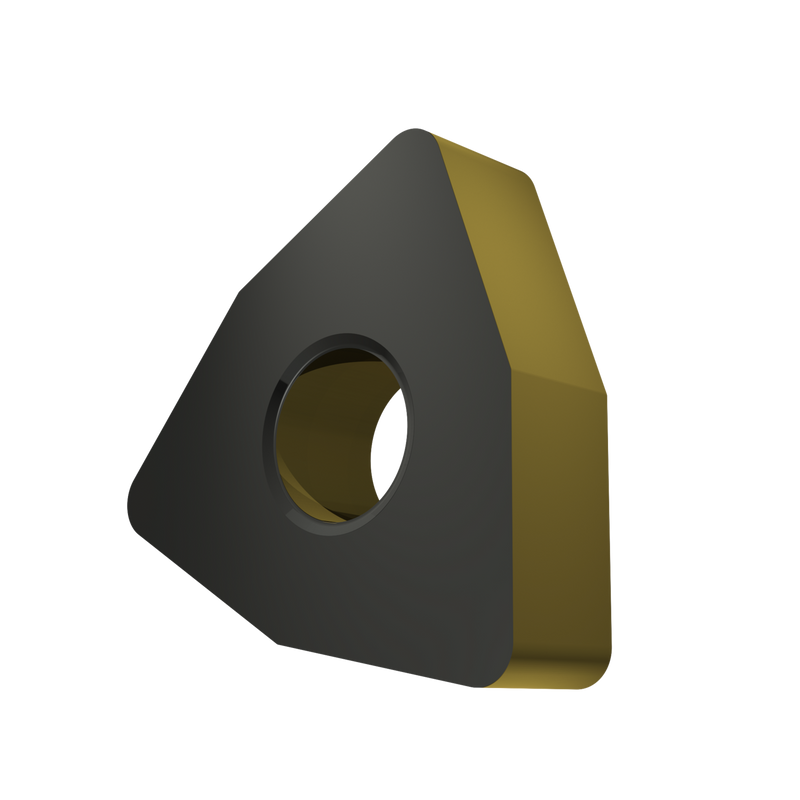

WNMA 433:T5415

WNMA 433:T5415

UGC DOR8716822
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon 80° avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 3/64" et une précision de positionnement selon la classe de tolérance ISO-M, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMA 433:T5415
Product Name (ISO)WNMA 080412:T5415
GradeT5415
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8716822
Product FamilyWNMA
Insert Geometry
Insert DesignANMF
Insert Shape Code (SC)W - trigone
Corner Radius — in (RE)0.0472"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716822
EAN3603604495509
Material Group Suitability
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
WNMA 433:T5415 — Line Drawing PDF Download
