WNMG 333W-M:T5415

WNMG 333W-M:T5415

UGC DOR8716823
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.04 CAD - $13.04 CAD
$13.04 CAD
$13.04 CAD - $13.04 CAD
$13.04 CAD

Vendu en lots de : 10

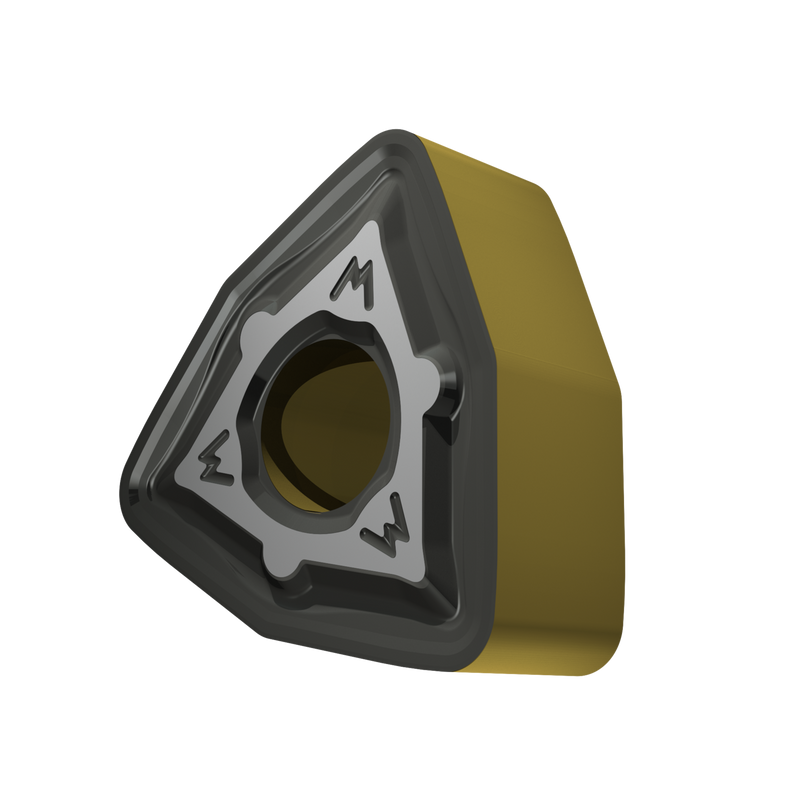

Plaquette négative double face, trigon 80° avec diamètre de cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 3/64", précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M avec arête racleuse, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la plage ISO K10 - K25, pour l'usinage de finition à l'ébauche des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 333W-M:T5415
Product Name (ISO)WNMG 060412W-M:T5415
GradeT5415
Chipbreaker (CBMD)W-M
Product Number8716823
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8716823
EAN3603604495516
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
WNMG 333W-M:T5415 — Line Drawing PDF Download
