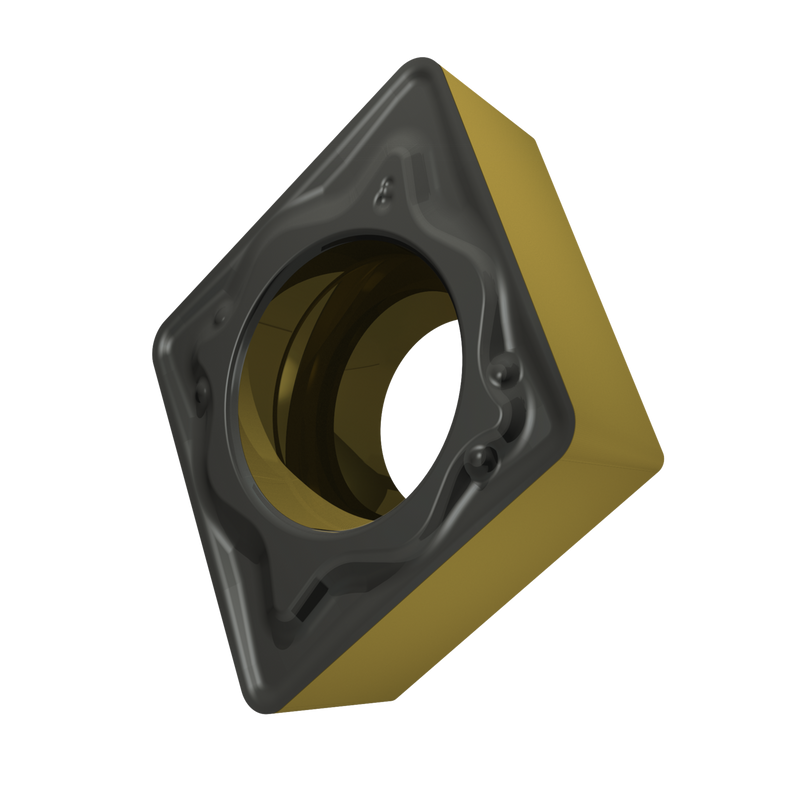

CCMT 32.52-RM:T5415

CCMT 32.52-RM:T5415

UGC DOR8717338
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 3/8", 5/32" d'épaisseur, rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T5415, un carbure WC-Co revêtu MT-CVD dans la plage ISO K10 - K25, pour l'usinage fin à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.52-RM:T5415
Product Name (ISO)CCMT 09T308E-RM:T5415
GradeT5415
Chipbreaker (CBMD)RM
Product Number8717338
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Reference Numbers
EDP Number8717338
EAN3603604496087
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
CCMT 32.52-RM:T5415 — Line Drawing PDF Download
